Product Name:

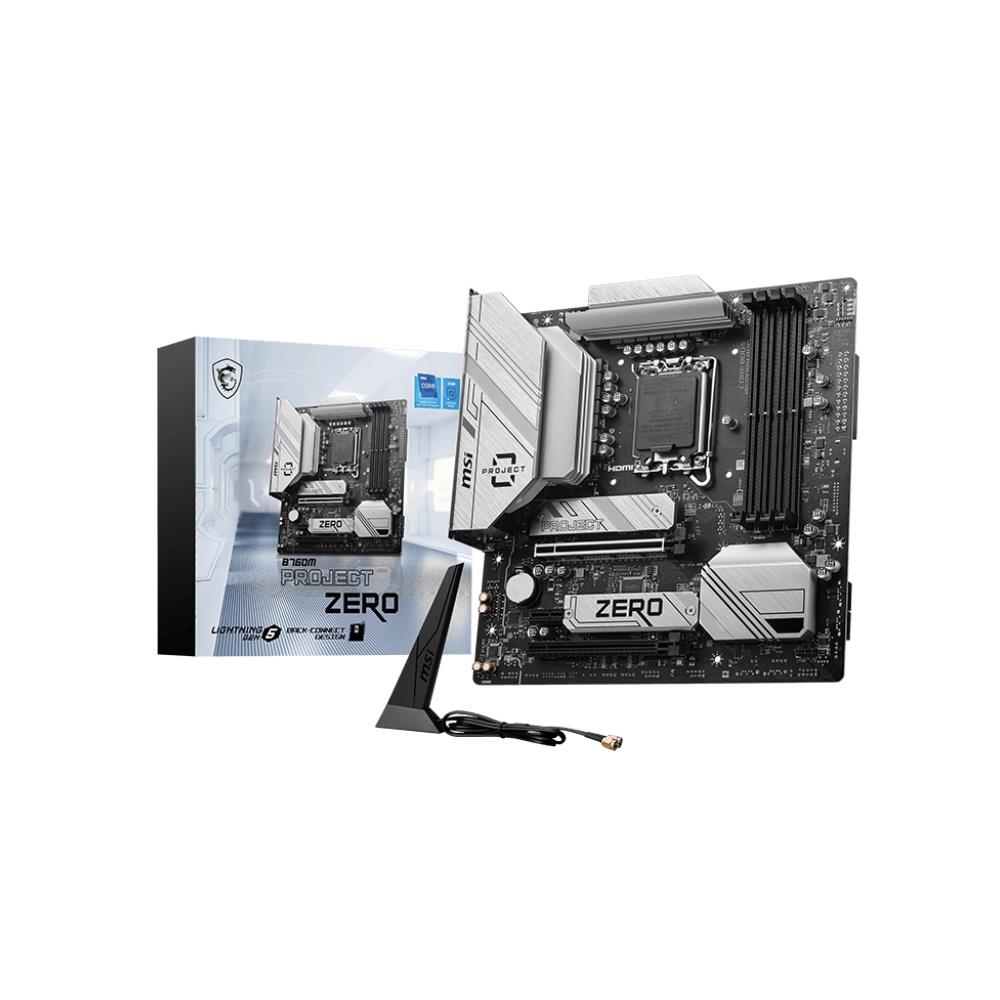

MSI B760M PROJECT ZERO (Socket 1700/Z760/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

uk.msi.com

Model Number:

B760M PROJECT ZERO

EAN:

4711377143660

UPC:

824142340394

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel B760

CPU Interface:

Socket 1700

CPU Support:

https://www.msi.com/Motherboard/B760M-PROJECT-ZERO/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 7800+ (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

1

PCI Express 5.0 x16:

1

PCI Express 4.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x4/SATA

LAN Speed:

Realtek 2.5Gbps LAN

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth:

v5.3

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Performance Audio
• Supports S/PDIF output

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 10Gbps Port(s) Type-A:

3

Back USB 20Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Other Port(s):

Wi-Fi / Bluetooth Antenna

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

2

USB 10Gbps Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x TBT Connector
• 1 x Tuning Controller Connector
• 2 x Addressable V2 RGB LED Connector
• 2 x RGB LED Connector
• 4 x EZ Debug LED

Form Factor:

Micro ATX

Product Width:

243.84mm

Product Length:

243.84mm

Package Width:

28.5cm

Package Length:

29cm

Package Height:

7.2cm

Gross Weight:

1.64Kg

Special Features:

• Support Intel Core 14th/13th/12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket.
• Supports DDR5 Memory, up to 7800+(OC) MHz.
• Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost.
• Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2.
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works.
• Audio Boost: Reward your ears with studio grade sound.
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material.

Package Contents:

• Motherboard
• Quick Installation Guide
• SATA Cable
• EZ M.2 Clip Package
• M.2 Screw / Standoff Set
• Cable Sticker
• Wi-Fi Antenna
