Product Name:

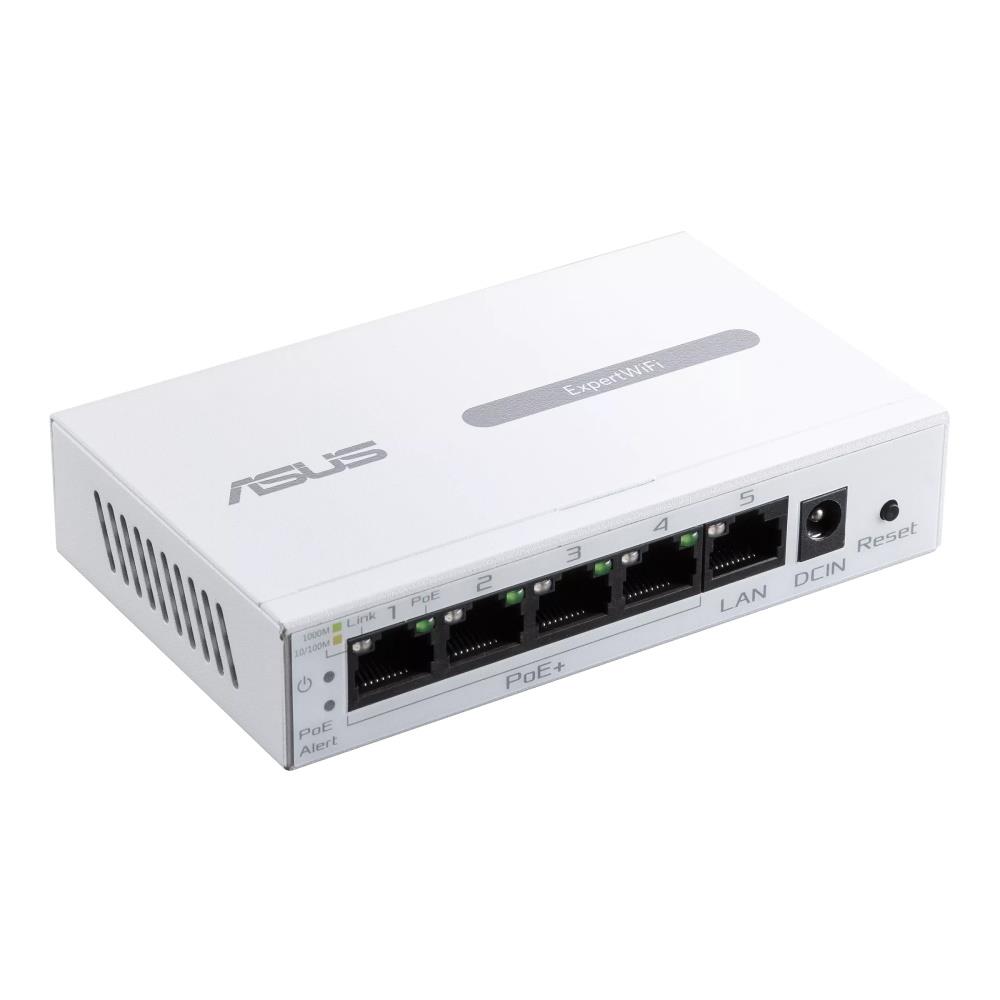

ASUS ExpertWiFi EBP15 5-Port GbE Smart Managed PoE+ Switch

Web Address:

www.asus.com

Model Number:

EBP15

EAN:

4711387093986

Package Type:

Retail

Warranty:

3 Years

Device Type:

PoE+ Switch

Ports:

5 x RJ45

Standards:

• IEEE 802.1p
• IEEE 802.1q
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3x
• IPv4

Transfer Rate:

10/100/1000

Network Architecture Types:

Infrastructure

LED indicators:

• System power ON/OFF
• PoE Alert
• Link, Speed, activity, and PoE indicators per port built into each RJ-45 port

Input Power:

• AC input: 100V-240V (50-60 Hz)
• DC output: 54V with 1.25A

Operating Temperature:

• Operating Temperature: 0?~40?
• Storage Temperature: -20?~70?
• Operating Humidity: 10%~95%RH non-condensing
• Storage Humidity: 5%~95%RH non-condensing

Product Width:

121mm

Product Length:

75mm

Product Height:

26mm

Package Width:

248g

Package Length:

23.1cm

Package Height:

21.1cm

Net Weight:

9.7cm

Gross Weight:

1.10Kg

Special Features:

• Power over Ethernet: With 4 PoE+ ports capable of delivering up to 60W of power, this device offers a convenient solution for powering various PoE-enabled devices.
• VLAN for easy device management: Each of the Ethernet ports can be assigned to a VLAN that provides additional security for your business.
• QoS for fluent network experience: Enjoy dedicated bandwidth priority based on Quality of Service traffic management to get a better delivery of mission-critical traffic such as voice and video. No delay anymore!
• IGMP snooping for multicast optimization: Ensures a better network experience, especially for the video streaming or audio conferencing, by optimizing multimedia traffic delivery.

Package Contents:

• ExpertWiFi EBP15
• RJ45 Ethernet Cable
• UK Power Adapter
• Quick Start Guide
• Warranty Card

Keywords:

• Switch
• Smart
• PoE+
