Product Name:

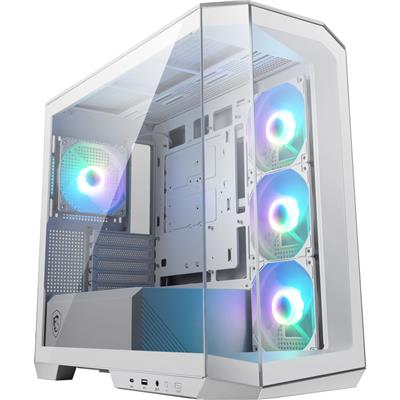

MSI MAG Pano M100RPZ Tower White Case (M-ATX/Mini-ITX)

Web Address:

uk.msi.com

Model Number:

C-MAG PANO M100RPZ WHITE

EAN:

4711377136488

Package Type:

Retail

Warranty:

1 Year

Case Type:

Micro ATX Tower

Colour:

White

Side Panel:

Tempered Glass

Front USB 3.2 Gen 1 Port(s) Type-A:

1

Front USB 3.2 Gen 2x2 Port(s) Type-C:

1

Front Audio in/out Jack(s):

1

Front RGB Controller(s):

1 x LED Switch Button

Expansion Slots:

5

Motherboard Support:

Mini ITX / Micro ATX

Drive Bay(s):

• 1 x 3.5-inch
• 1 x 2.5-inch/3.5-inch combo (up to 2 x 2.5-inch or 1 x 2.5-inch + 1 x 3.5-inch)

Pre-installed Fan(s) Rear:

1 x ARGB Fan

Pre-installed Fan(s) Side:

3 x ARGB Fan

Radiator Support:

• Top: 120mm / 240mm / 360mm
• Rear: 120mm / 140mm

Fan Support:

• Top: 3 x 120mm / 2 x 140mm
• Rear: 1 x 120mm / 1 x 140mm
• Side: 3 x 120mm
• Bottom: 1 x 120mm
• PSU Shroud: 2 x 120mm

Clearances:

• Max. GPU Length: 390mm
• Max. CPU Cooler Height: 175mm
• Max. PSU Length: 200mm

Product Width:

235mm

Product Length:

440mm

Product Height:

405mm

Package Width:

55.5cm

Package Length:

60cm

Package Height:

35cm

Gross Weight:

11.19Kg

Special Features:

• Pre-build with Reverse blade Fan: Preinstalled on the side are reverse blade fans, allowing the unobstructed display of the ARGB fan's beauty without any interference from fan frames.
• Support Back-Connect Motherboard: Supporting back connect motherboards enables easy installation without the worry of forgetting to connect cables, which might otherwise require disassembling graphics cards and coolers.
• 270-degree Panoramic Display: Drawing inspiration from the MAG logo, create a distinctive chassis design that embodies the unique MAG characteristics. The front interior of the chassis incorporates a space for displaying figurines, complemented by a 270-degree panoramic tempered glass, transforming it into a showcase style chassis.
• GPU Support: Stand Equipped with a level indicator to ensure effortless adjustment of the support height during installation, preventing sagging. Meanwhile, its magnetic base secures more stability within the chassis.
• 1 to 4 ARGB FAN Control Board: This fan control board supports up to 4 x ARGB fan function. Allow you to use the LED switch button to adjust the ARGB lighting intuitionally.

Package Contents:

Case

Keywords:

• Case
• Tower
• Micro-ATX
• Mini-ITX
• ARGB
