Product Name:

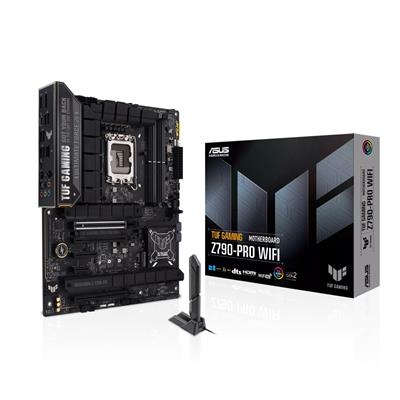

ASUS TUF GAMING Z790-PRO WIFI (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

C-TUF GAMING Z790-PRO WIFI

EAN:

4711387340844

UPC:

197105340848

Package Type:

Retail

Warranty:

1 Year

BIOS:

• 192 (128+64) Mb Flash ROM
• UEFI AMI BIOS

Chipset:

Intel Z790

CPU Interface:

Socket 1700

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 7800+ (O.C.)

Max. Memory Support:

192GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

PCI Express 4.0 x4:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

M.2 Socket(s):

• 3 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x4/SATA

On-Board LAN:

• 1 x Intel 2.5Gb Ethernet
• TUF LANGuard

Wireless NIC:

Wi-Fi 6

Wireless Technology:

• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band

Bluetooth:

v5.3

On-Board Audio:

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 3.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi module

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 3.0 Header(s):

1

USB 3.2 Header(s) Gen 2x2:

1

Thunderbolt Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.5cm

Package Length:

35.5cm

Package Height:

7cm

Gross Weight:

1.94Kg

Special Features:

• Intel LGA 1700 socket: Ready for Intel Core Next-Gen and 13th Gen Intel Core processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors.
• Premium power solution: 16+1+1 power stages, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power deliver.
• Exclusive AI and memory technology: AI Overclocking, AI Cooling II, Two-Way AI Noise Cancelation and ASUS Enhanced Memory Profile II.
• Next-gen connectivity: PCIe 5.0, USB 20Gbps, front USB 20Gbps, Thunderbolt 4 header and Power Delivery 3.0.
• Made for online Gaming: WiFi 6E with ASUS WiFi Q-Antenna, Intel 2.5 Gb Ethernet with TUF LANGuard.
• Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.
• Comprehensive cooling: Enlarged VRM and chipset heatsinks, M.2 heatsinks, hybrid fan headers and the Fan Xpert 4 utility in Armoury Crate.
• Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support.
• PC DIY design: PCIe Slot Q-Release, M.2 Q-Latch, Q-LED, Q-Antenna and SafeSlot.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x TUF GAMING sticker
• 2 x M.2 rubber packages
• 1 x Screw package for M.2 SSD
• 1 x TUF certification card
• 1 x Quick start guide
