Product Name:

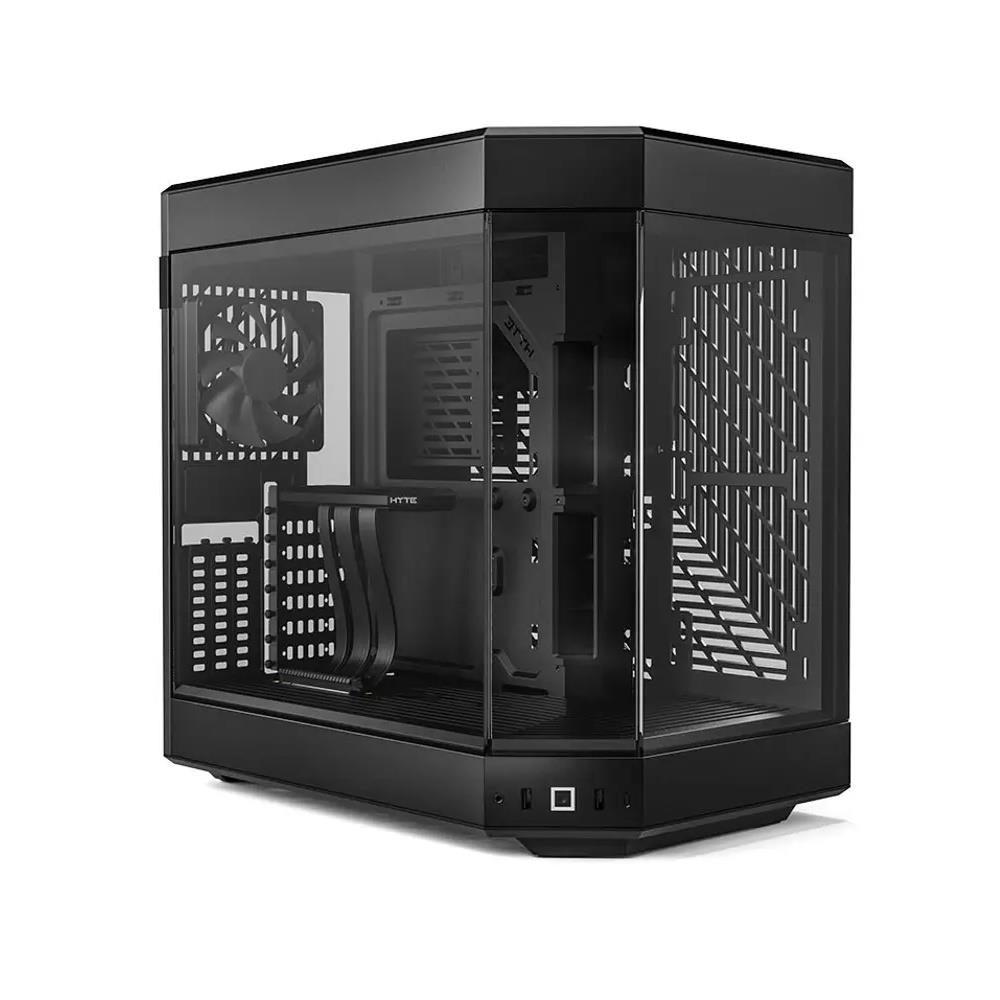

Hyte Y60 Mid Tower Case Black (E-ATX/ATX/M-ATX/M-ITX)

Web Address:

hyte.com

Model Number:

CS-HYTE-Y60-B

EAN:

1220000350090

UPC:

848604044255

Package Type:

Retail

Warranty:

3 Years

Case Type:

Mid Tower

Colour:

Black

Material Chassis:

• Tempered Glass
• Steel
• ABS

Side Panel:

Tempered Glass

Front USB 3.0 Port(s):

2

Front USB 3.2 Gen 2 Port(s) Type-C:

1

Front Audio in/out Jack(s):

1

Expansion Slots:

3 + 7 half-height

Motherboard Support:

Mini ITX / Micro ATX / ATX / E-ATX

Drive Bay(s):

2 x 3.5-inch HDD or 4 x 2.5-inch SSD

PSU Support:

ATX

Pre-installed Fan(s) Rear:

1 x 120mm

Pre-installed Fan(s) Bottom:

2 x 120mm

Radiator Support:

• Side: 120mm, 140mm, 240mm, 280mm up to 150mm thick
• Top: 120mm, 240mm, 360mm up to 30mm thick
• Rear: 120mm

Fan Support:

• Side: 2 x 120mm / 140mm
• Top: 3 x 120mm
• Rear: 1 x 120mm
• Bottom: 2 x 120mm / 140mm

Clearances:

• Power Supply: Up to 235mm in length
• Video Card Max Dimensions: 375mm length, 75mm thick (60mm or less recommended for best cooling)

Dust Filter(s):

• Bottom
• Side
• Top

Product Width:

285mm

Product Length:

456mm

Product Height:

462mm

Product Weight:

9600g

Package Width:

52.5cm

Package Length:

54cm

Package Height:

32.5cm

Gross Weight:

11.30Kg

Special Features:

• Panoramic Views: No corner pillar. The Y60 features a 3-piece panoramic tempered glass design for the ultimate photo and display potential. See your build the way it was meant to be seen from the left or right side of your desk with a simple turn.
• Exclusively Vertical GPU Mounted: Why would you want to see your graphics card any other way?
• Included PCIE 4.0 Riser Cable: A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card. The protective shroud is the first of its kind, made specifically for the Y60.
• Antechamber Construction: Segment cables from thermal components and turn your PC into a work of art.
• Cold Floor Cooling: Eliminate hot spots with sweeping lateral vents from fans tastefully tucked into the basement of the Y60.
• Included Fans: The three pre-installed Flow FE12 fans with fluid-dynamic bearings provide whisper-quiet operation.

Package Contents:

• Y60 ATX Case
• Instructions
• PC Headset Adapter
• Accessory Box
• PCI Express Riser 4.0 x 16

Keywords:

• Case
• 60L
• Tempered Glass
• EATX
• ATX
• mATX
• ITX
