Product Name:

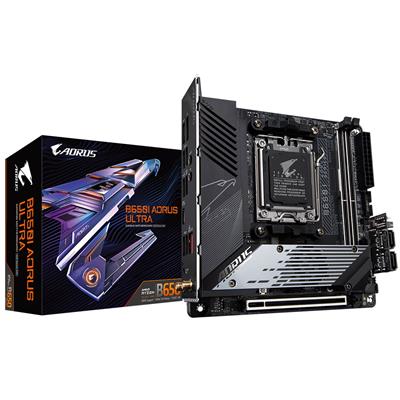

Aorus B650I AORUS ULTRA (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Mini ITX)

Web Address:

www.gigabyte.com

Model Number:

C-B650I AORUS ULTRA

EAN:

4719331850425

UPC:

889523034392

Package Type:

Retail

Warranty:

1 Year

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B650

CPU Interface:

Socket AM5

CPU Support:

https://www.gigabyte.com/Motherboard/B650I-AORUS-ULTRA-rev-10/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 6400 (O.C.)

Max. Memory Support:

96GB

PCI Express 4.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 5.0 x4

On-Board LAN:

Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Bluetooth:

v5.2

On-Board Audio:

• Realtek ALC4080 CODEC
• High Definition Audio
• 2-channel

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

2

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back Other Port(s):

2 x SMA antenna connectors (2T2R)

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

1

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2x2:

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 1 x Addressable LED Strip Header
• 1 x RGB LED Strip Header

Internal Button(s):

1 x Reset

Form Factor:

Mini ITX

Product Width:

170mm

Product Length:

170mm

Package Width:

23cm

Package Length:

23.5cm

Package Height:

9.5cm

Gross Weight:

1.44Kg

Special Features:

• AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors.
• Unparalleled Performance: Direct 8+2+1 Phases Digital VRM Solution.
• Dual Channel DDR5: 2 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support.
• Next Generation Storage: 1 x PCIe 5.0 x4 and 2 x PCIe 4.0 x4 M.2 Connectors.
• Fully Covered Heatpipe and M.2 Thermal Guard III with Active Cooling: To Ensure 2280 PCIe 5.0 M.2 SSD Performance.
• EZ-Latch: PCIe x16 Slot and M.2 Connectors with Quick Release and Screwless Design.
• Hi-Fi Audio with DTS:X Ultra: ALC4080 CODEC.
• Fast Networks: Intel 2.5GbE LAN and Wi-Fi 6E 802.11ax.
• Extended Connectivity: DP, HDMI, Rear USB-C with DP Alt Mode, Front USB-C 20Gb/s.
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Package Contents:

• Motherboard
• 1 x GC-B650I FRONT CARD
• 1 x Antenna
• 2 x SATA cables
• 1 x RGB LED strip extension cable
• 1 x front panel extension cable
• 1 x front USB header extension cable
• 2 x fan power extension cables
• M.2 screw/standoff
• Manual
