Product Name:

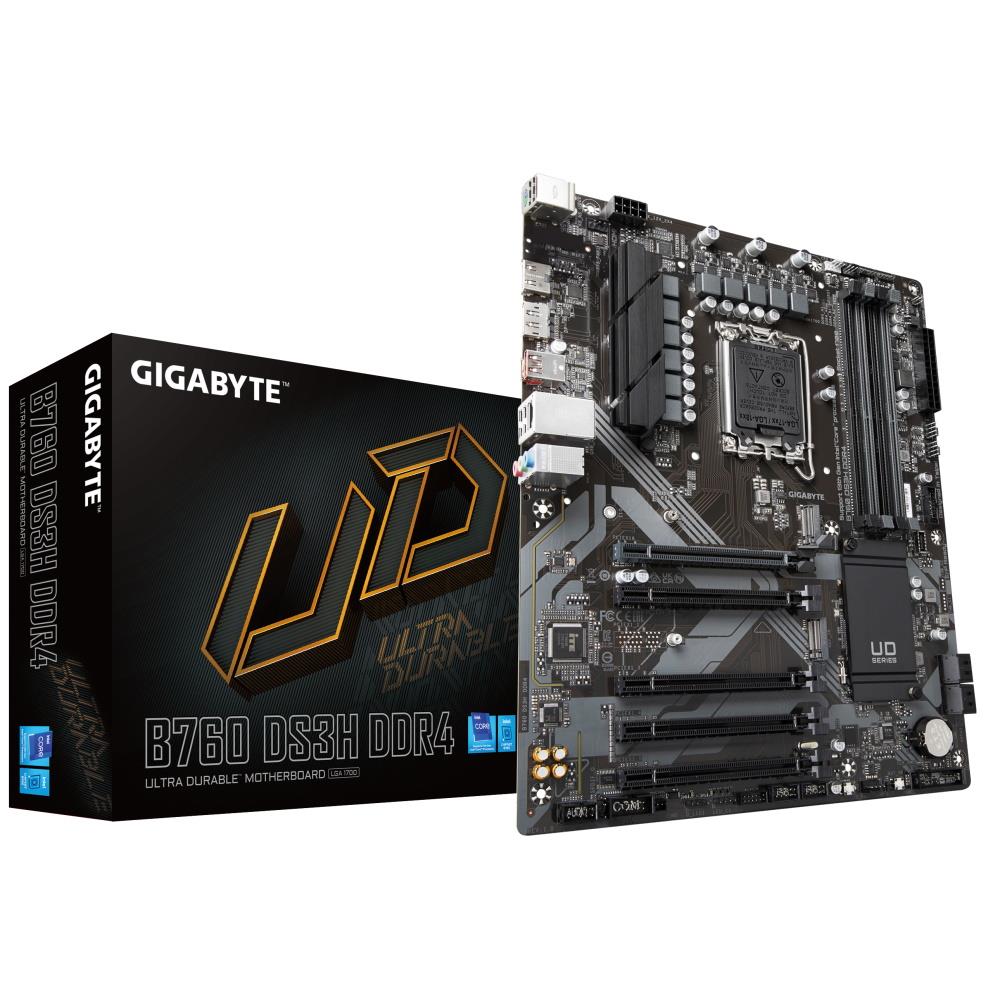

Gigabyte B760 DS3H DDR4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/ATX)

Web Address:

www.gigabyte.com

Model Number:

B760 DS3H DDR4

EAN:

4719331850746

UPC:

889523034866

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel B760 Express

CPU Interface:

Socket 1700

CPU Support:

https://www.gigabyte.com/Motherboard/B760-DS3H-DDR4-rev-10/support#support-cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 5333 (O.C.)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

4

PCI Express 4.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

On-Board LAN:

Realtek GbE LAN chip (1 Gbps/100 Mbps)

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

• 2 x Addressable LED Strip Headers
• 2 x RGB LED Strip Headers

Internal Button(s):

• 1 x Q-Flash Plus
• 1 x Reset

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

34cm

Package Height:

8cm

Gross Weight:

1.24Kg

Special Features:

• Intel Socket LGA 1700: Support 13th and 12th Gen Series Processors.
• Unparalleled Performance: Hybrid 8+2+1 Phases Digital VRM Solution.
• Dual Channel DDR4: 4xDIMMs XMP Memory Module Support.
• Next Generation Storage: 2xPCIe 4.0 x4 M.2 Connectors.
• EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design.
• Fast Networks: GbE LAN.
• Extended Connectivity: Rear USB-C 20Gb/s, DP, HDMI.
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Package Contents:

• Motherboard
• Manual
• 2 x SATA cables
• M.2 screws
• IO Shield
