Home > Online Shop > Power Supply Units > CORSAIR 1600W TITANIUM MODULAR AX1600I

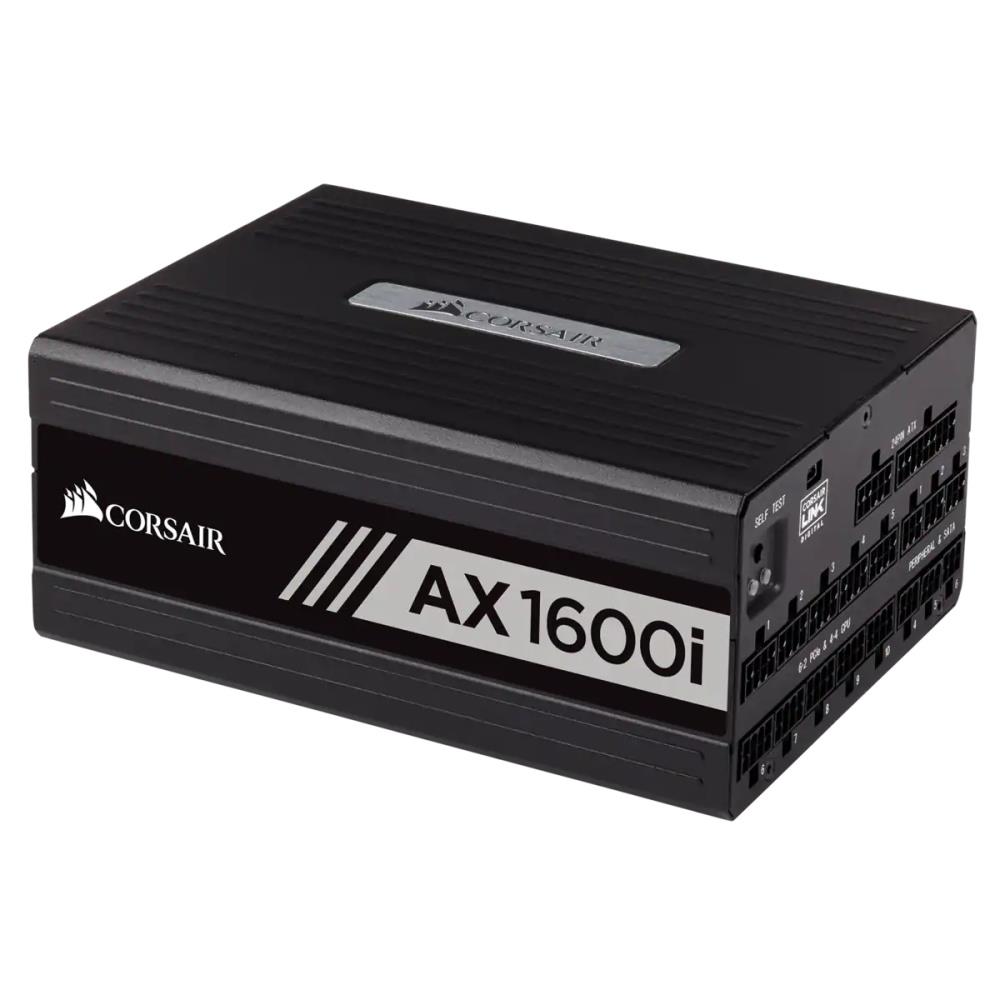

CORSAIR 1600W TITANIUM MODULAR AX1600I



CORSAIR 1600W TITANIUM MODULAR AX1600I
SKU: 122586

  • Product Group:Power Supply Units
  • Manufacturer:CORSAIR
  • SKU:122586
  • Product Name:Corsair 1600W ATX Fully Modular Power Supply - AX1600i - 80 PLUS Titanium
  • Web Address:www.corsair.com
  • Model Number:CP-9020087-UK
  • UPC:843591050357
  • Package Type:Retail
  • Warranty:10 Years
  • Type:ATX 12V v2.4
  • Maximum Power:1600W
  • 20+4-pin Main:1
  • 4+4-pin ATX/EPS:2
  • 6+2-pin PCI-E:10
  • SATA Connector(s):16
  • Peripheral Connector(s):9
  • Floppy Connector(s):2
  • PFC:Active
  • AC Input:100-240VAC
  • Over Voltage Protection:Yes
  • Under Voltage Protection:Yes
  • Short Circuit Protection:Yes
  • Over Power Protection:Yes
  • Over Temperature Protection:Yes
  • Colour:Black
  • Cable Type:Fully Modular
  • Cooling System:1 x 140mm Fan (Fluid Dynamic Bearing)
  • Product Width:150mm
  • Product Length:200mm
  • Product Height:86mm
  • Product Weight:2650g
  • Package Width:21.9cm
  • Package Length:39.8cm
  • Package Height:15.9cm
  • Gross Weight:5.50Kg
  • Special Features:
    • 1600W of Ultimate Power: Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficiency power.
    • Top Tier Components: 100% 105°C Japanese capacitors, top-specification internal components and digital design deliver over 94% efficiency.
    • The Only Consumer PSU with Gallium Nitride Transistors: Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a
    • smaller form-factor.
    • World Class Electrical Performance: Incredibly stable voltages and ultra-low ripple noise.
    • Software Monitoring: CORSAIR LINK software provides in-depth monitoring for PSU temperature, fan speed, voltages, current, AC/DC
    • wattage and efficiency, with the ability to log everything for easy troubleshooting.
    • Take Control: CORSAIR LINK lets you adjust cooling fan speed, RPM curves and switch between single or multi-rail overcurrent protection
    • (OCP), all from your desktop.
    • 140mm Patented FDB cooling fan: Delivers low-noise operation even at demanding loads.
    • Zero RPM Fan Mode: For near-silent operation at low to medium loads.
    • Choose Your Colour: Three-color customizable magnetic side labels let you choose your PSU’s style to match your build.
    • Fully Modular Cables: Use only the cables you need for quick and easy installation.
  • Package Contents:
    • AX1600i Digital ATX Power Supply
    • User Manual
    • UK Power Cord
    • Cable Ties
    • Velcro Cable Straps
    • Mounting Screws
    • CORSAIR Case Badge
    • CORSAIR LINK USB Cable
    • Replaceable Magnetic Side Labels
  • Keywords:
    • Power Supplie
    • PSU
    • 1600W
    • OVP
    • UVP
    • SCP
    • OTP
    • OPP
