Product Name:

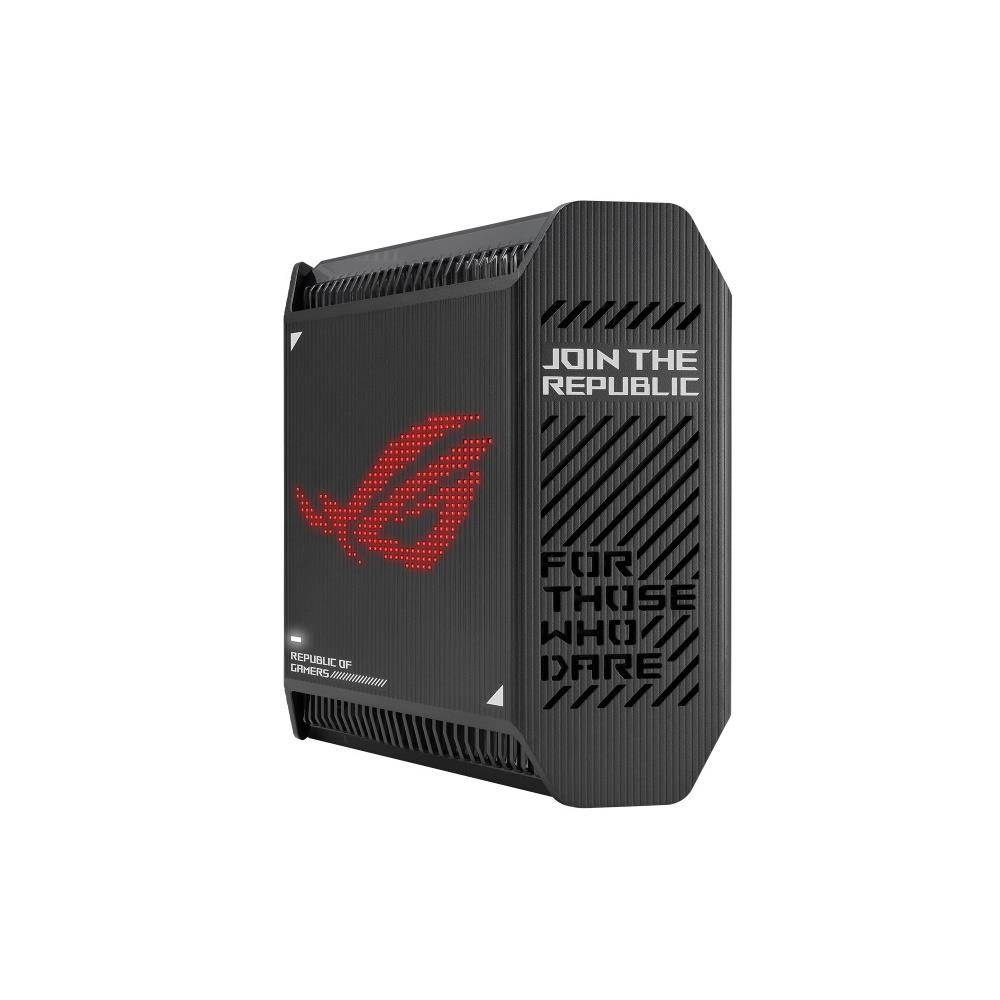

ASUS ROG Rapture GT6 WiFi 6 Mesh System - 1 Pack - Black - AX10000

Web Address:

www.asus.com

Model Number:

ROG RAPTURE GT6 1 PACK BLACK

EAN:

4711081798552

UPC:

195553798556

Package Type:

Retail

Warranty:

3 Years

Device Type:

Mesh

Ports:

• 1 x 2.5 Gigabit WAN Port
• 3 x Gigabit LAN Ports
• 1 x USB 3.2 Gen 1x1 Port

Standards:

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac
• IEEE 802.11ax
• IPv4
• IPv6

Transfer Rate:

• 2.4GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps
• 5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
• 5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Network Architecture Types:

Infrastructure

Memory:

• 256MB Flash
• 512MB DDR4 RAM

Antenna Type:

9 x Internal

Frequency Range:

• 2.4GHz
• 5GHz-1
• 5GHz-2

Security:

• WPA3 Personal
• WPA2 Personal
• WPA Personal
• WPA Enterprise
• WPA2 Enterprise
• Open System

Management:

• Operating mode:
• Wireless router mode
• Access point mode
• Free OS upgrade
• Firewall
• Maximum Firewall keyword filter :
• Max 64 rules
• Maximum Firewall network service filter :
• Max 32 rules
• Maximum Firewall URL filter :
• Max 64 rules
• Wake on LAN (WOL)
• SSH
• Configuration backup and restore
• Diagnosis tools
• Feedback system
• System log

VPN Support:

• VPN Client L2TP
• VPN Client OVPN
• VPN Client PPTP
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP
• VPN Fusion

LED indicators:

1 x Power

Button:

• WPS Button
• Reset Button
• Power Switch

Input Power:

• AC Input: 110V-240V(50-60Hz)
• DC Output: 19V with max. 2.37A current / 19.5V with max. 2.31A current

Product Weight:

880g

Package Width:

23.5cm

Package Length:

28cm

Package Height:

14cm

Gross Weight:

2.29Kg

Special Features:

• High-Efficiency Performance - WiFi 6 tri-band gaming mesh system with dedicated high-performance backhaul and 160 MHz channels that provide ultrafast speeds of up to 10,000 Mbps.
• Expanded Coverage - Nine powerful internal antennas and ASUS RangeBoost Plus technology to cover up to 5,800 square feet.
• Ultra-fast Wired Connection - Enjoy up to 2.5 times faster wired connectivity with a 2.5 Gbps WAN port and LAN aggregation.
• Triple-Level Game Acceleration - Optimize game traffic every step of the way, from your device to the game server.
• Comprehensive Network Security - Free lifetime subscription to AiProtection by Trend Micro and ASUS Instant Guard, which secures your WiFi and protects your devices wherever you are.

Package Contents:

• ROG Rapture GT6
• RJ-45 Cable
• UK Power Adapter
• Quick Start Guide
• Warranty Card

Keywords:

• Mesh
• WiFi 6
• AX10000
