Product Name:

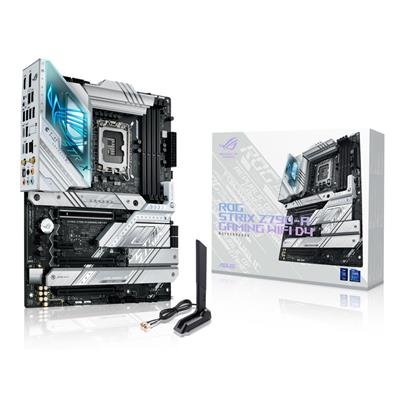

ASUS ROG STRIX Z790-A GAMING WIFI D4 (Socket 1700/Z790/DDR4/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

C-ROG STRIX Z790-A GAMING WIFI D4

EAN:

4711081941033

UPC:

195553941037

Package Type:

Retail

Warranty:

1 Year

BIOS:

• 256 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

Intel Z790

CPU Interface:

Socket 1700

CPU Support:

https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-a-gaming-wifi-d4-model/helpdesk_qvl_cpu/

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 5333 (O.C.)

Max. Memory Support:

128GB

PCI Express 4.0 x16:

2

PCI Express 5.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 3 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x4/SATA

On-Board LAN:

• 1 x Intel 2.5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band

Bluetooth:

v5.3

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi Module

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2x2:

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable Gen 2 Headers
• 1 x Aura RGB Header
• 1 x CPU Over Voltage Jumper
• 1 x Thermal Sensor Header
• 1 x Thunderbolt Header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.3cm

Package Length:

34cm

Package Height:

7cm

Gross Weight:

2.27Kg

Special Features:

• Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors 12th Gen Intel Core, Pentium Gold and Celeron Processors.
• Robust Power Solution: 16 + 1 power solution rated for 70A per stage with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors.
• Optimized VRM Thermals: Massive heatsinks with integrated I/O cover and high-conductivity thermal pads.
• Ample M.2 Support: One PCIe 4.0 M.2 slot with a heatsink and backplate, and three PCIe 4.0 M.2 slots with heatsinks.
• Abundant Connectivity: USB 3.2 Gen 2x2 Type-C rear I/O port and additional front-panel connector with PD 3.0 up to 30W, USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4.
• High-Performance Networking: On-board WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard.
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and Two-Way AI Noise Cancelation simplifies setup and improves performance.
• Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III.
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and addressable Gen 2 headers.
• DIY-friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-LED, BIOS FlashBack button, BIOS FlashBack LED, and Clear CMOS button.
• Renowned Software: Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s Cables
• 1 x Thermal Pad for M.2
• 1 x ASUS Wi-Fi Moving Antennas
• 1 x Cable Ties Package
• 1 x M.2 Backplate Q-Latch Package
• 1 x M.2 Q-Latch Package
• 1 x ROG Key Chain
• 1 x ROG Strix Stickers
• 1 x ROG Strix Thank You Card
• 2 x M.2 Rubber Packages
• 1 x M.2 Backplate Rubber
• 1 x User Guide
