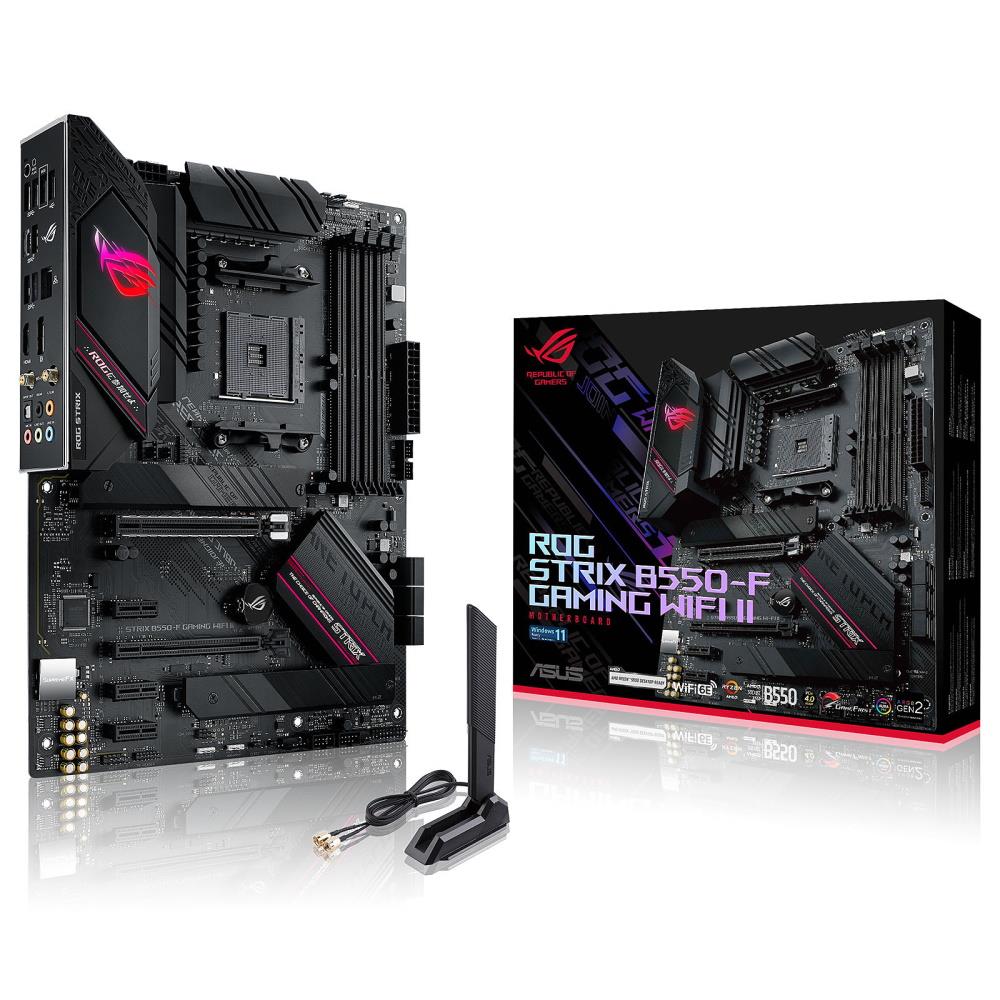

ASUS AM4 ROG STRIX B550-F GAMING WIFI II



ASUS AM4 ROG STRIX B550-F GAMING WIFI II
SKU: 122414

  • Product Group:Motherboards
  • Manufacturer:ASUS
  • SKU:122414
  • Product Name:ASUS ROG STRIX B550-F GAMING WI-FI II (Socket AM4/B550/DDR4/S-ATA 600/ATX)
  • Web Address:www.asus.com
  • Model Number:ROG STRIX B550-F GAMING WI-FI II
  • EAN:4711081453314
  • UPC:195553453318
  • Package Type:Retail
  • Warranty:3 Years
  • BIOS:
    • 256 Mb Flash ROM
    • UEFI AMI BIOS
  • Chipset:AMD B550
  • CPU Interface:Socket AM4
  • CPU Support:https://rog.asus.com/motherboards/rog-strix/rog-strix-b550-f-gaming-wifi-ii-model/helpdesk_cpu/
  • RAM Technology:DDR4 (Dual Channel)
  • RAM Slots:4 x 288-pin
  • RAM Speeds:Up to DDR4 4800 (O.C.)
  • Max. Memory Support:128GB
  • PCI Express 3.0 x16:1
  • PCI Express 4.0 x16:1
  • PCI Express 3.0 x1:3
  • S-ATA 6Gb/s Port(s):6
  • RAID:Raid 0/1/10
  • M.2 Socket(s):
    • 1 x SATA/PCIe 3.0 x4
    • 1 x SATA/PCIe 4.0 x4
  • On-Board LAN:1 x Intel I225-V 2.5Gb Ethernet
  • Wireless NIC:Wi-Fi 6E
  • Wireless Technology:
    • 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    • Supports 2.4/5/6GHz frequency band
  • Bluetooth:v5.2
  • On-Board Audio:ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
  • On-Board Video:AMD processor with integrated graphics is required
  • Back USB 2.0 Port(s):2
  • Back USB 3.2 Port(s) Type-A Gen 1:4
  • Back USB 3.2 Port(s) Type-A Gen 2:1
  • Back USB 3.2 Port(s) Type-C Gen 2:1
  • Back HDMI Port(s):1
  • Back DisplayPort(s):1
  • Back LAN Port(s):1
  • Back Audio Jack(s):5
  • Back S/PDIF Output Port(s):1
  • Back Other Port(s):Wi-Fi Module
  • Back Button(s):1 x BIOS FlashBack
  • 24-pin ATX Power:1
  • 8-pin ATX Power:1
  • 4-pin ATX Power:1
  • USB 2.0 Header(s):2
  • USB 3.2 Header(s) Gen 1:1
  • Front Panel Audio Connector:1
  • Internal Other Port(s):
    • 1 x Addressable Gen 2 header
    • 2 x AURA RGB headers
    • 1 x Thermal sensor header
    • 1 x Thunderbolt header
  • Form Factor:Standard ATX
  • Product Width:244mm
  • Product Length:305mm
  • Package Width:27.5cm
  • Package Length:34cm
  • Package Height:7cm
  • Gross Weight:1.77Kg
  • Special Features:
    • AM4 socket: Ready for AMD Ryzen 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors.
    • Best gaming connectivity: PCIe 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C, plus HDMI 2.1 and DisplayPort 1.2 output.
    • Smooth networking: On-board WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard.
    • Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors.
    • Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration.
    • DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack, Q-LEDs and SafeSlot.
    • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers.
    • Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III for immersive sound.
  • Package Contents:
    • ROG STRIX B550-F GAMING WIFI II motherboard
    • 1 x Addressable RGB extension cable
    • 4 x SATA 6Gb/s cables
    • 1 x ASUS Wi-Fi moving antennas
    • 1 x Cable ties pack
    • 1 x M.2 Rubber Package
    • 1 x M.2 SSD screw package
    • 1 x ROG key chain
    • 1 x ROG STRIX stickers
    • 1 x ROG STRIX thank you card
    • Support Disk
    • Manual
  • Keywords:
    • Motherboard
    • AM4
    • B550
    • DDR4
    • WiFi
    • Bluetooth
