Product Name:

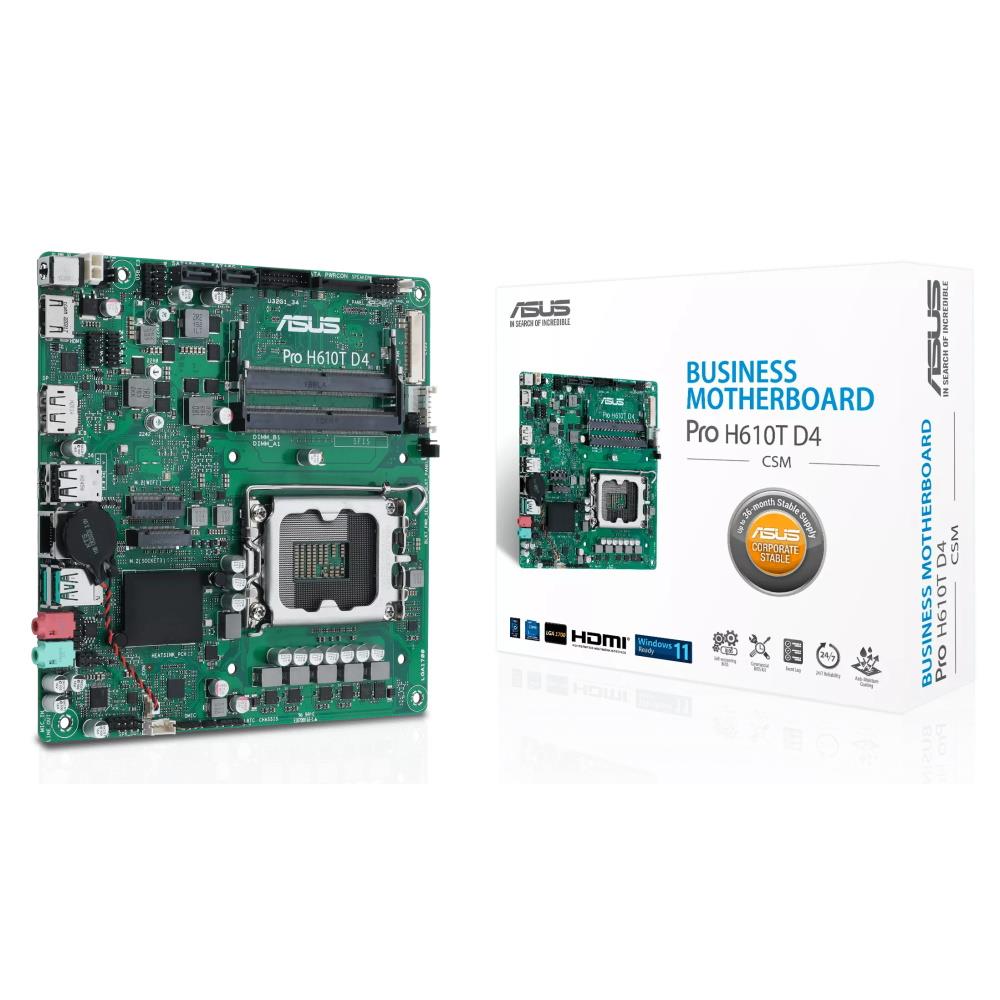

ASUS PRO H610T D4-CSM (Socket 1700/H610/DDR4 SO-DIMM/S-ATA 600/Thin Mini ITX)

Web Address:

www.asus.com

Model Number:

PRO H610T D4-CSM

EAN:

4711081679851

UPC:

195553679855

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 128 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

Intel H610

CPU Interface:

Socket 1700

CPU Support:

https://www.asus.com/Motherboards-Components/Motherboards/CSM/Pro-H610T-D4-CSM/HelpDesk_QVL_CPU/

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 260-pin

RAM Speeds:

Up to DDR4 3200 (O.C.)

Max. Memory Support:

64GB

S-ATA 6Gb/s Port(s):

2

M.2 Socket(s):

1 x SATA/PCIe 4.0 x4

On-Board LAN:

1 x Realtek 1Gb Ethernet

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back Other Port(s):

1 x DC Power Connector (Support 19V)

USB 2.0 Header(s):

3

USB 3.2 Header(s) Gen 1:

1

Internal Other Port(s):

• 1 x 2-pin internal DC power connector
• 1 x Stereo speaker connector
• 1 x DMIC header
• 1 x Backlight inverter voltage selection header
• 1 x FPD brightness header
• 1 x Panel voltage selection header
• 1 x Panel off header
• 1 x Clear CMOS header
• 1 x Chassis Intrude header
• 1 x COM Port header
• 1 x COM debug header
• 1 x Front Panel Audio header (AAFP)
• 1 x LVDS connector
• 1 x M.2 slot (Key E)
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

Form Factor:

Thin Mini-ITX

Product Width:

170mm

Product Length:

170mm

Package Width:

18.5cm

Package Length:

23cm

Package Height:

6cm

Gross Weight:

0.67Kg

Special Features:

• Intel LGA 1700 socket: Ready for 12th Gen Intel processors.
• ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards.
• ASUS Control Centre Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration.
• Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs.
• Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments.
• Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance.
• Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x SATA power cable
• 2 x IO Shields
• Support Disk
• 1 x ACC Express Activation Key Card
• User guide
