Product Name:

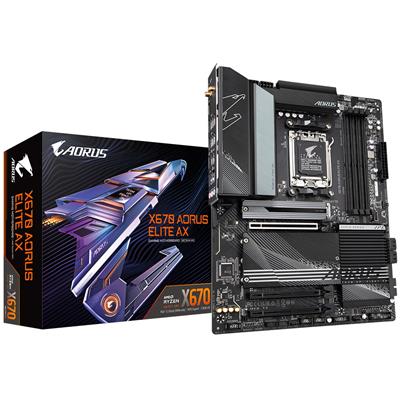

Aorus X670 AORUS ELITE AX (Socket AM5/X670/DDR5/S-ATA 600/ATX)

Web Address:

www.gigabyte.com

Model Number:

C-X670 AORUS ELITE AX

EAN:

4719331848798

UPC:

889523033500

Package Type:

Retail

Warranty:

1 Year

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD X670

CPU Interface:

Socket AM5

CPU Support:

https://www.gigabyte.com/ca/Motherboard/X670-AORUS-ELITE-AX-rev-10/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 5200 (O.C.)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4

On-Board LAN:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth:

v5.2

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 1:

6

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

2 x SMA antenna connectors (2T2R)

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

USB 3.2 Header(s) Gen 2x2:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x CPU Cooler LED Strip/RGB LED Strip Header
• 2 x Addressable LED Strip Headers
• 2 x RGB LED Strip Headers
• 1 x THB_U4 Add-in card Connector

Internal Button(s):

• 1 x Power
• 1 x Reset
• 1 x Clear CMOS
• 1 x Reset Jumper
• 1 x Clear CMOS Jumper

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

34cm

Package Height:

8cm

Gross Weight:

2.20Kg

Special Features:

• AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors.
• Unparalleled Performance: Twin 16+2+2 Phases Digital VRM Solution.
• Dual Channel DDR5: 4 x SMD DIMMs with EXPO and XMP Memory Module Support.
• Next Generation Storage: 1 x PCIe 5.0 x4 and 3 x PCIe 4.0 x4 M.2 Connectors.
• Mega-Heatpipe and M.2 Thermal Guard: To Ensure VRM Power Stability and 25110 PCIe 5.0 M.2 SSD Performance.
• EZ-Latch: PCIe x16 Slot and M.2 Connectors with Quick Release and Screwless Design.
• Fast Networks: 2.5GbE LAN and Wi-Fi 6E 802.11ax.
• Extended Connectivity: HDMI, Dual USB-C 20Gbps and Upcoming GIGABYTE USB4 AIC Support.
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Package Contents:

• Motherboard
• Manual
• 1 x Antenna
• 2 x SATA Cables
• 1 x G Connector
• M.2 screw/standoff
