Home > Online Shop > Motherboards > MSI AM4 MAG B550 TOMAHAWK MAX WIFI

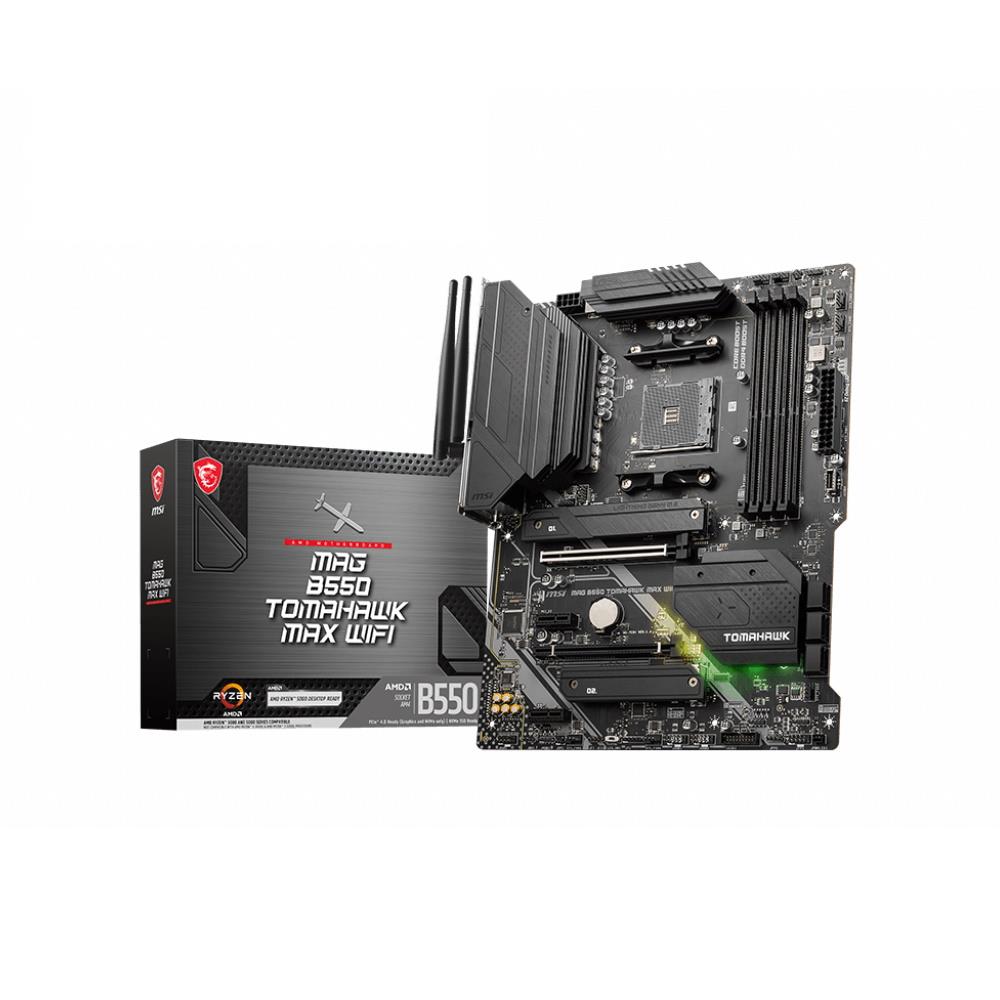

MSI AM4 MAG B550 TOMAHAWK MAX WIFI



MSI AM4 MAG B550 TOMAHAWK MAX WIFI
SKU: 121966

  • Product Group:Motherboards
  • Manufacturer:MSI
  • SKU:121966
  • Product Name:MSI MAG B550 TOMAHAWK MAX WIFI (Socket AM4/B550/DDR4/S-ATA 600/ATX)
  • Web Address:uk.msi.com
  • Model Number:MAG B550 TOMAHAWK MAX WIFI
  • EAN:4719072957957
  • UPC:824142286685
  • Package Type:Retail
  • Warranty:3 Years
  • Chipset:AMD B550
  • CPU Interface:Socket AM4
  • CPU Support:https://www.msi.com/Motherboard/MAG-B550-TOMAHAWK-MAX-WIFI/support#cpu
  • RAM Technology:DDR4 (Dual Channel)
  • RAM Slots:4 x 288-pin
  • RAM Speeds:Up to DDR4 5100 (O.C.)
  • Max. Memory Support:128GB
  • PCI Express 3.0 x16:1
  • PCI Express 4.0 x16:1
  • PCI Express 3.0 x1:2
  • S-ATA 6Gb/s Port(s):6
  • RAID:Raid 0/1/10
  • M.2 Socket(s):
    • 1 x SATA/PCIe 4.0 x4
    • 1 x PCIe Gen 3.0 x4
  • On-Board LAN:1 x Realtek RTL8125B 2.5Gbps LAN controller
  • Wireless NIC:WiFi 6E
  • Wireless Technology:
    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps
    • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Bluetooth:v5.2
  • On-Board Audio:
    • Realtek ALC897 Codec
    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output
  • On-Board Video:AMD processor with integrated graphics is required
  • Back PS/2 Keyboard/Mouse Port:1
  • Back USB 2.0 Port(s):2
  • Back USB 3.2 Port(s) Type-A Gen 1:2
  • Back USB 3.2 Port(s) Type-A Gen 2:1
  • Back USB 3.2 Port(s) Type-C Gen 2:1
  • Back HDMI Port(s):1
  • Back DisplayPort(s):1
  • Back LAN Port(s):1
  • Back Audio Jack(s):6
  • Back S/PDIF Output Port(s):1
  • Back Other Port(s):Wi-Fi / Bluetooth Antenna
  • Back Button(s):Flash BIOS
  • 24-pin ATX Power:1
  • 8-pin ATX Power:1
  • USB 2.0 Header(s):2
  • USB 3.2 Header(s) Gen 1:2
  • Front Panel Audio Connector:1
  • TPM Header(s):1
  • Internal Other Port(s):
    • 2 x 4-pin RGB LED connectors
    • 2 x 3-pin RAINBOW LED connectors
  • Form Factor:Standard ATX
  • Product Width:244mm
  • Product Length:305mm
  • Package Width:27cm
  • Package Length:34.5cm
  • Package Height:7cm
  • Gross Weight:1.77Kg
  • Special Features:
    • Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors.
    • Supports DDR4 Memory, up to 5100+(OC) MHz.
    • Lightning-Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2.
    • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
    • Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
    • 2.5G LAN with LAN Manager and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
    • Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
    • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
    • Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire.
  • Package Contents:
    • MAG B550 TOMAHAWK MAX WIFI
    • 1 x Cable SATA 6G cables (2 cables/pack)
    • 1 x Wi-Fi antenna
    • 1 x M.2 screws (3 pcs./pack
    • 1 x MAG Sticker
    • 1 x Case badge
    • Product registration card
    • Support Disk
    • Quick installation guide
    • MSI components compatibility and reward program card
  • Keywords:
    • Motherboard
    • AM4
    • B550
    • DDR4
    • ATX
