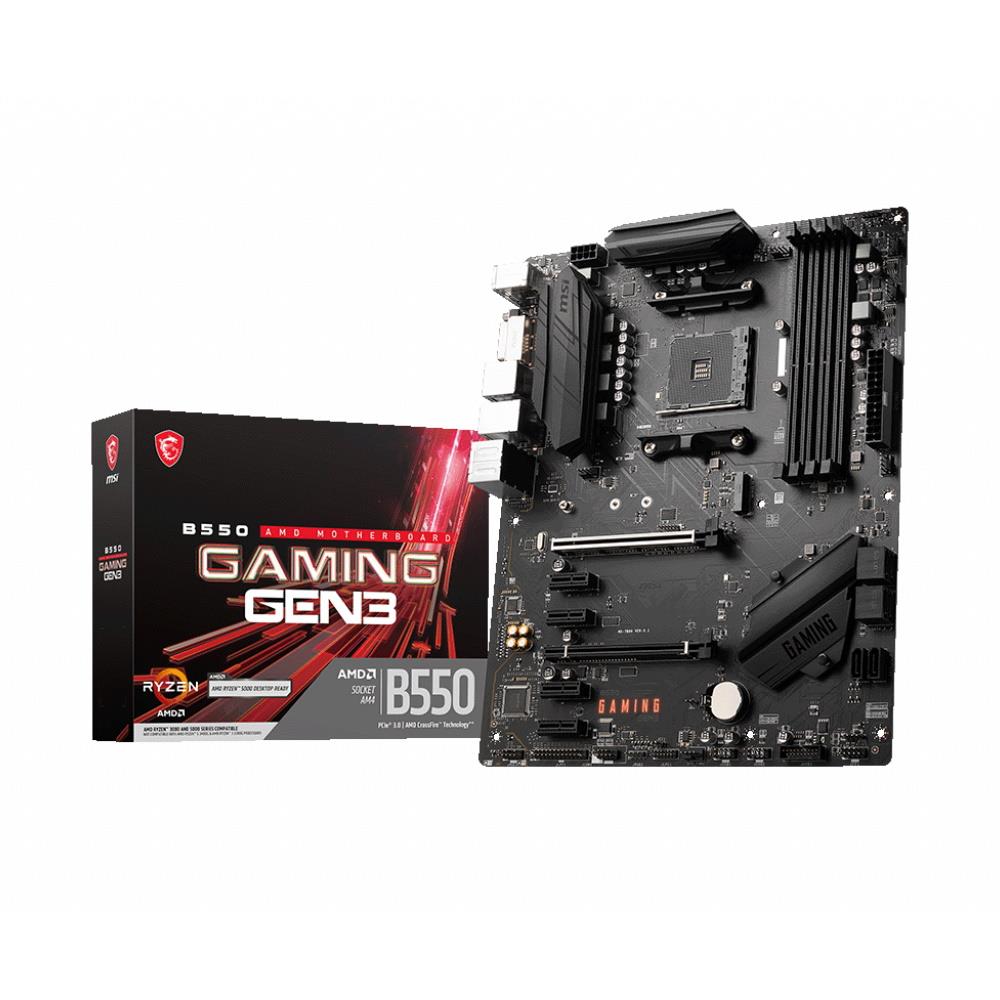

MSI AM4 B550 GAMING GEN3



MSI AM4 B550 GAMING GEN3
SKU: 121964

  • Product Group:Motherboards
  • Manufacturer:MSI
  • SKU:121964
  • Product Name:MSI B550 GAMING GEN3 (Socket AM4/B550/DDR4/S-ATA 600/ATX)
  • Web Address:uk.msi.com
  • Model Number:B550 GAMING GEN3
  • EAN:4719072970321
  • UPC:824142283851
  • Package Type:Retail
  • Warranty:3 Years
  • Chipset:AMD B550
  • CPU Interface:Socket AM4
  • CPU Support:https://www.msi.com/Motherboard/B550-GAMING-GEN3/support#cpu
  • RAM Technology:DDR4 (Dual Channel)
  • RAM Slots:4 x 288-pin
  • RAM Speeds:Up to DDR4 4400 (O.C.)
  • Max. Memory Support:128GB
  • PCI Express 3.0 x16:2
  • PCI Express 2.0 x1:4
  • S-ATA 6Gb/s Port(s):6
  • RAID:Raid 0/1/10
  • M.2 Socket(s):1 x SATA/PCIe 3.0 x4
  • On-Board LAN:1 x Realtek RTL8111H LAN controller
  • On-Board Audio:
    • Realtek ALC897 Codec
    • 7.1-Channel High Definition Audio
  • Back PS/2 Keyboard/Mouse Port:1
  • Back USB 2.0 Port(s):2
  • Back USB 3.2 Port(s) Type-A Gen 1:2
  • Back USB 3.2 Port(s) Type-A Gen 2:2
  • Back DVI-D Port(s):1
  • Back HDMI Port(s):1
  • Back LAN Port(s):1
  • Back Audio Jack(s):6
  • Back Button(s):Flash BIOS
  • 24-pin ATX Power:1
  • 8-pin ATX Power:1
  • USB 2.0 Header(s):2
  • USB 3.2 Header(s) Gen 1:1
  • Parallel Port Header(s):1
  • COM Port Header(s):1
  • Front Panel Audio Connector:1
  • TPM Header(s):1
  • Form Factor:Standard ATX
  • Product Width:244mm
  • Product Length:305mm
  • Package Width:27cm
  • Package Length:34.6cm
  • Package Height:6.5cm
  • Gross Weight:1.29Kg
  • Special Features:
    • Supports AMD Ryzen 5000 and 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors.
    • Supports DDR4 Memory, up to 4400(OC) MHz.
    • Lightning-Fast Game experience: Turbo M.2 Gen3 x4, AMD Turbo USB 3.2 GEN 2.
    • Enhanced Power Design: Core Boost, DDR4 Boost.
    • MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports AMD Crossfire.
    • Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
    • Audio Boost: Reward your ears with studio grade sound quality.
  • Package Contents:
    • Motherboard
    • Quick installation guide
    • 2 x SATA 6Gb/s cables
    • 1 x Case badge
    • 1 x I/O Shielding
    • 1 x M.2 screw
    • Product Registration Card
  • Keywords:
    • Motherboard
    • AM4
    • B550
    • DDR4
    • ATX
