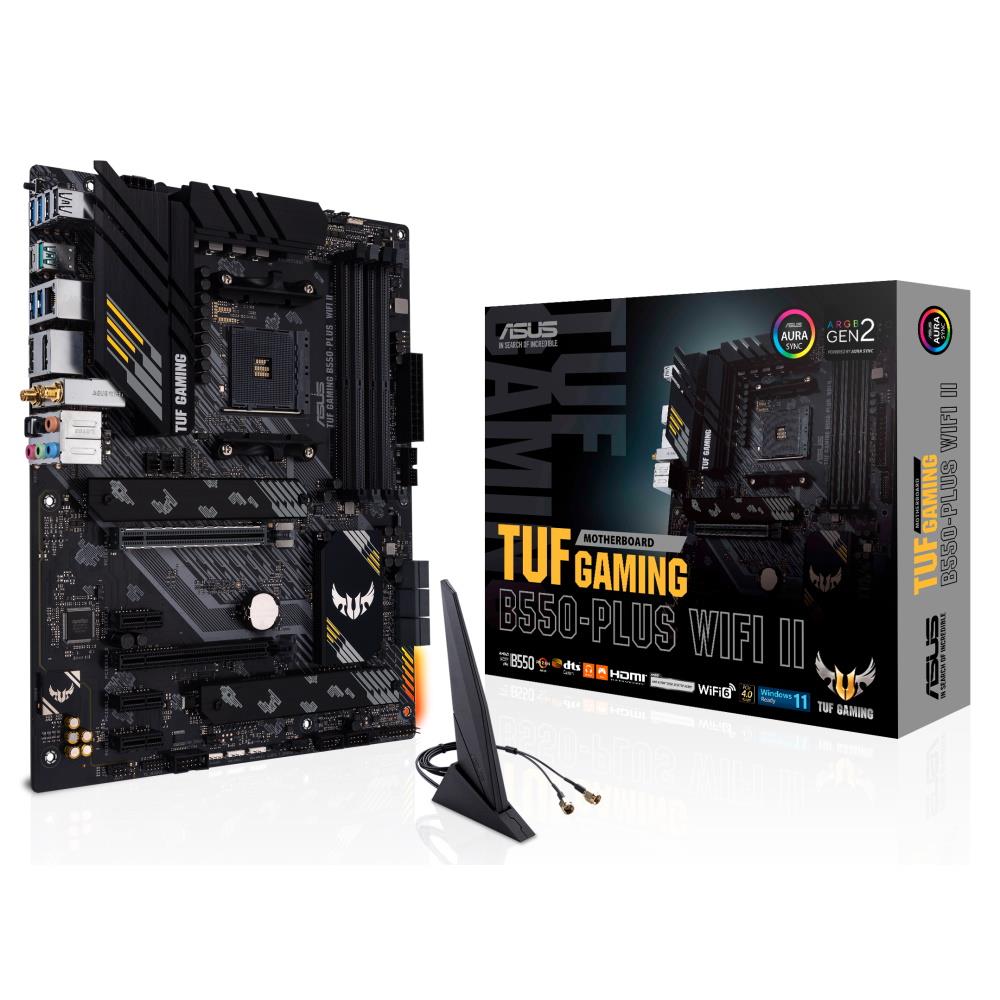

ASUS AM4 TUF GAMING B550-PLUS WIFI II



ASUS AM4 TUF GAMING B550-PLUS WIFI II
SKU: 121249

  • Product Group:Motherboards
  • Manufacturer:ASUS
  • SKU:121249
  • Product Name:ASUS TUF GAMING B550-PLUS WIFI II (Socket AM4/B550/DDR4/S-ATA 600/ATX)
  • Web Address:www.asus.com
  • Model Number:TUF GAMING B550-PLUS WIFI II
  • EAN:4711081338413
  • UPC:195553338417
  • Package Type:Retail
  • Warranty:3 Years
  • BIOS:
    • 256 Mb Flash ROM
    • UEFI AMI BIOS
  • Chipset:AMD B550
  • CPU Interface:Socket AM4
  • RAM Technology:DDR4 (Dual Channel)
  • RAM Slots:4 x 288-pin
  • RAM Speeds:Up to DDR4 4866 (O.C.)
  • Max. Memory Support:128GB
  • PCI Express 3.0 x16:1
  • PCI Express 4.0 x16:1
  • PCI Express 3.0 x1:3
  • S-ATA 6Gb/s Port(s):6
  • RAID:Raid 0/1/10
  • M.2 Socket(s):
    • 1 x SATA/PCIe 4.0 x4
    • 1 x SATA/PCIe 3.0 x4
  • On-Board LAN:1 x Realtek 2.5Gb Ethernet
  • Wireless NIC:
    • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2
    • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • Wireless Technology:Supports 2.4/5GHz frequency band
  • Bluetooth:v5.2
  • On-Board Audio:Realtek 7.1 Surround Sound High Definition Audio CODEC
  • On-Board Video:AMD processor with integrated graphics is required
  • Back USB 2.0 Port(s):2
  • Back USB 3.2 Port(s) Type-A Gen 1:4
  • Back USB 3.2 Port(s) Type-A Gen 2:1
  • Back USB 3.2 Port(s) Type-C Gen 2:1
  • Back HDMI Port(s):1
  • Back DisplayPort(s):1
  • Back LAN Port(s):1
  • Back Audio Jack(s):5
  • Back S/PDIF Output Port(s):1
  • Back Other Port(s):1 x ASUS Wi-Fi Module
  • Back Button(s):1 x BIOS FlashBack
  • 24-pin ATX Power:1
  • 8-pin ATX Power:1
  • USB 2.0 Header(s):2
  • USB 3.2 Header(s) Gen 1:1
  • Thunderbolt Header(s):1
  • COM Port Header(s):1
  • Front Panel Audio Connector:1
  • TPM Header(s):1
  • Internal Other Port(s):
    • 2 x AURA Addressable Gen 2 headers
    • 2 x AURA RGB headers
    • 1 x Thermal Sensor header
  • Form Factor:Standard ATX
  • Product Width:244mm
  • Product Length:305mm
  • Package Width:27.5cm
  • Package Length:34cm
  • Package Height:7cm
  • Gross Weight:1.61Kg
  • Special Features:
    • AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors.
    • Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability.
    • Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility.
    • Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header support.
    • Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard.
    • AI noise-cancelling microphone provides crystal-clear in-game voice communication.
  • Package Contents:
    • Motherboard
    • 2 x SATA 6Gb/s cables
    • IO Shield
    • 1 x M.2 ANCHOR
    • Support Disk
    • Manual
  • Keywords:
    • Motherboard
    • AM4
    • B550
    • DDR4
    • PCIe4
    • Wi-Fi
