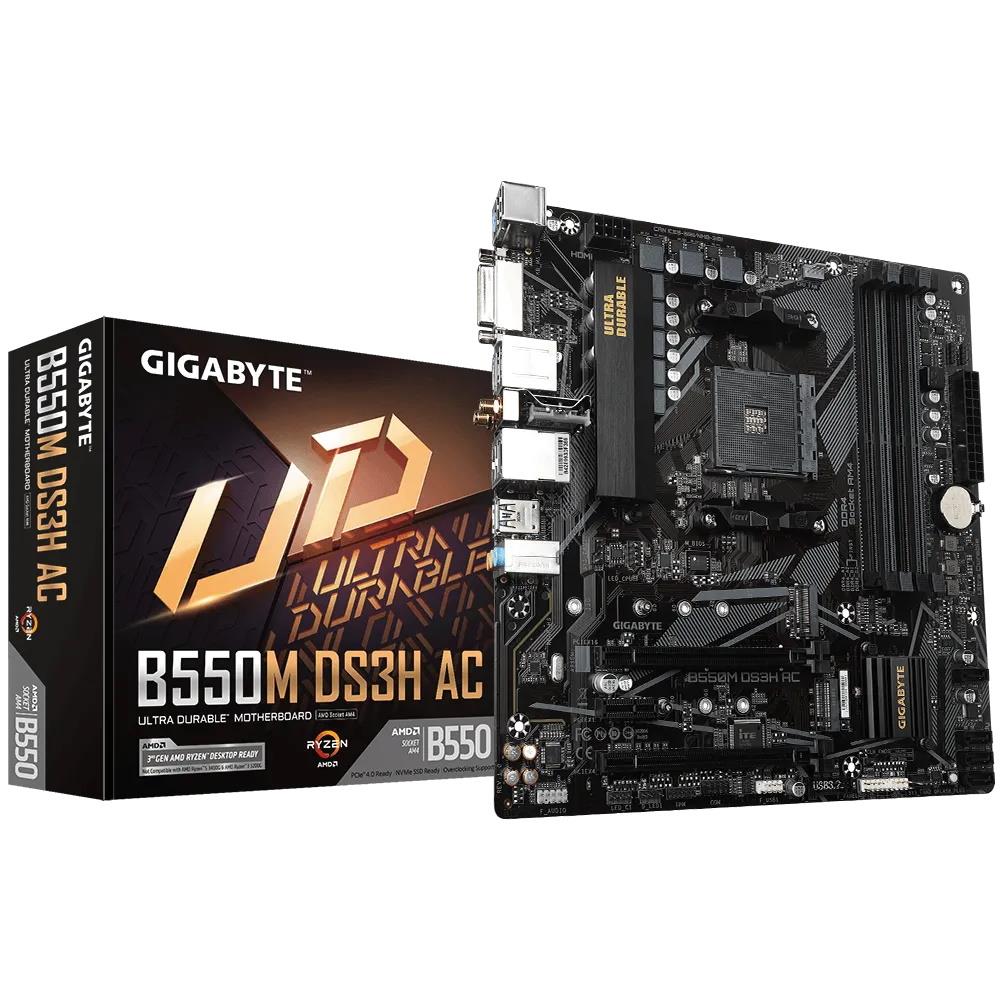

GIGABYTE AM4 B550M DS3H AC M-ATX
GIGABYTE AM4 B550M DS3H AC M-ATX
SKU: 121036
Product Group:
Motherboards
Manufacturer:
GIGABYTE
SKU:
121036
Product Name:
Gigabyte B550M DS3H AC (Socket AM4/B550/DDR4/S-ATA 600/Micro ATX)
Web Address:
www.gigabyte.com
Model Number:
B550M DS3H AC
EAN:
4719331810962
UPC:
889523024416
Package Type:
Retail
Warranty:
3 Years
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset:
AMD B550
CPU Interface:
Socket AM4
CPU Support:
https://www.gigabyte.com/uk/Motherboard/B550M-DS3H-AC-rev-1x/support#support-cpu
RAM Technology:
DDR4 (Dual Channel)
RAM Slots:
4 x 288-pin
RAM Speeds:
Up to DDR4 4733 (O.C.)
Max. Memory Support:
128GB
PCI Express 4.0 x16:
1
PCI Express 3.0 x4:
1
PCI Express 3.0 x1:
1
S-ATA 6Gb/s Port(s):
6
RAID:
Raid 0/1/10
M.2 Socket(s):
1 x SATA/PCIe 3.0 x4
1 x SATA/PCIe 4.0 x4
On-Board LAN:
Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Wireless NIC:
Intel Wi-Fi AC 3168
Wireless Technology:
WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Bluetooth:
v4.2
On-Board Audio:
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
On-Board Video:
AMD processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port:
1
Back USB 2.0 Port(s):
4
Back USB 3.2 Port(s) Type-A Gen 1:
4
Back DVI-D Port(s):
1
Back HDMI Port(s):
1
Back LAN Port(s):
1
Back Audio Jack(s):
3
Back Other Port(s):
2 x SMA antenna connectors (1T1R)
24-pin ATX Power:
1
8-pin ATX Power:
1
Internal Other Port(s):
2 x system fan headers
2 x addressable LED strip headers
Internal Button(s):
1 x Q-Flash Plus button
Form Factor:
Micro ATX
Product Width:
244mm
Product Length:
244mm
Package Width:
27cm
Package Length:
27cm
Package Height:
7cm
Gross Weight:
1.03Kg
Special Features:
Supports AMD Ryzen 5000 Series/Ryzen 5000 G-Series/Ryzen 4000 G-Series and Ryzen 3000 Series Processors.
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.
5+3 Phases Pure Digital VRM Solution with Low RDS (on) MOSFETs.
Ultra-Durable PCIe 4.0 Ready x16 Slot.
Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors.
Onboard Intel® Dual Band 802.11ac Wireless and BT 4.2 with WIFI Antenna.
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality.
GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management.
Rear HDMI & DVI Support.
RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips.
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
Anti-Sulphur Resistors Design.
Package Contents:
B550M DS3H AC
Support Disk
2 x SATA Cables
Manual
IO Shield
2 x Antennas
