Home > Online Shop > I/O Cards > GIGABYTE THUNDERBOLT 4 CARD MAPLE RIDGE

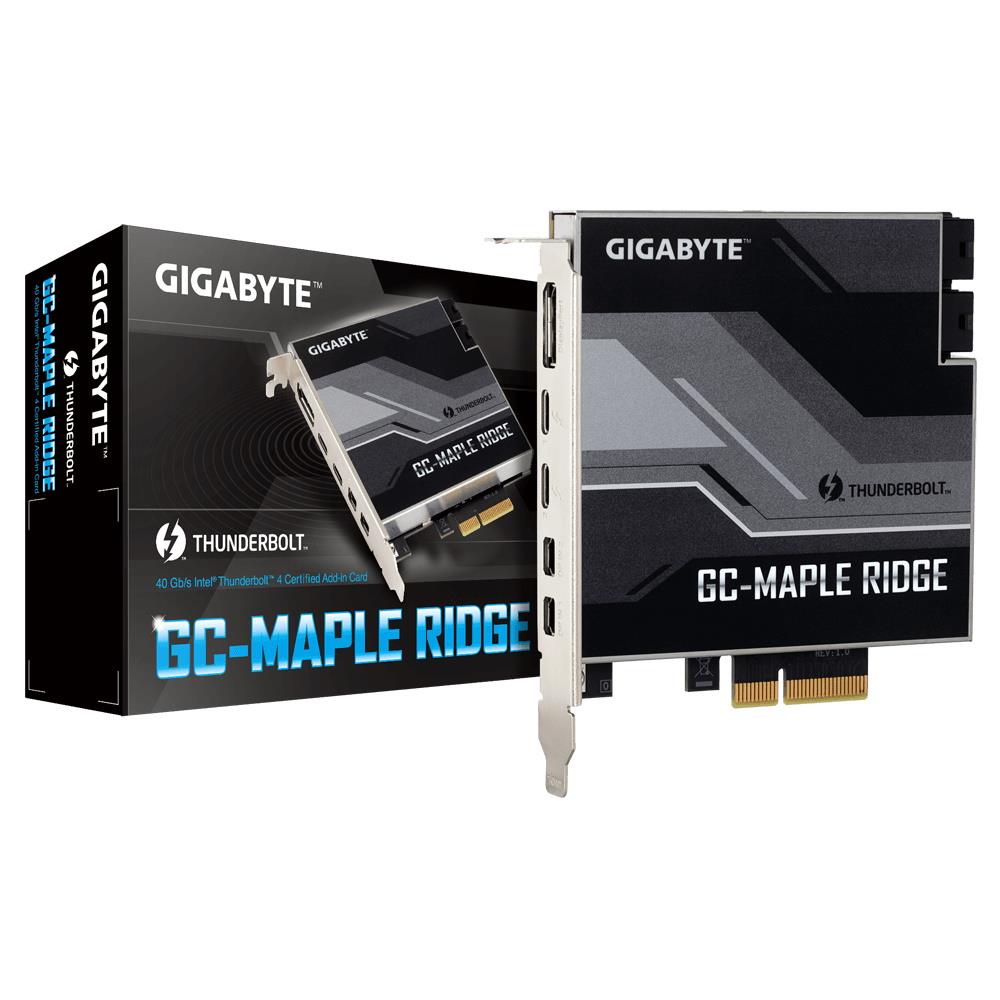

GIGABYTE THUNDERBOLT 4 CARD MAPLE RIDGE



GIGABYTE THUNDERBOLT 4 CARD MAPLE RIDGE
SKU: 120443

  • Product Group:I/O Cards
  • Manufacturer:GIGABYTE
  • SKU:120443
  • Product Name:Gigabyte 40 Gb/s Intel Thunderbolt 4 Certified Add-in Card Maple Ridge
  • Web Address:www.gigabyte.com
  • Model Number:GC-MAPLE RIDGE
  • EAN:4719331819729
  • UPC:889523027882
  • Package Type:Retail
  • Warranty:1 Year
  • Interface:PCIe 3.0 x4
  • Connector:Dual Thunderbolt 4 Ports (USB Type-C)
  • Package Width:15cm
  • Package Length:21cm
  • Package Height:5.5cm
  • Gross Weight:0.40Kg
  • Special Features:
    • Compatible with GIGABYTE motherboards that featured a Thunderbolt header (Refer Manufactures Web Site)
    • Intel Thunderbolt 4 Certified add-in card.
    • Intel JHL8540 Thunderbolt 4 controller.
    • Dual Thunderbolt 4 Ports (USB Type-C).
    • Max Bandwidth 40 Gb/s.
    • DisplayPort 1.4 Capable with 4K Video Throughout.
    • Daisy-chain up to 10 Devices (5 devices per port).
    • Support PD3.0 standard (up to 97W).
  • Package Contents:
    • Intel Thunderbolt 4 Certified Add-in Card
    • 2 x Mini-DisplayPort Cable
    • 1 x Thunderbolt Header Cable (5-pin)
    • 1 x Thunderbolt Header Cable (3-pin)
    • 1 x USB 2.0/1.1 Header Cable
  • Keywords:
    • Thunderbolt 4
    • Add-in
