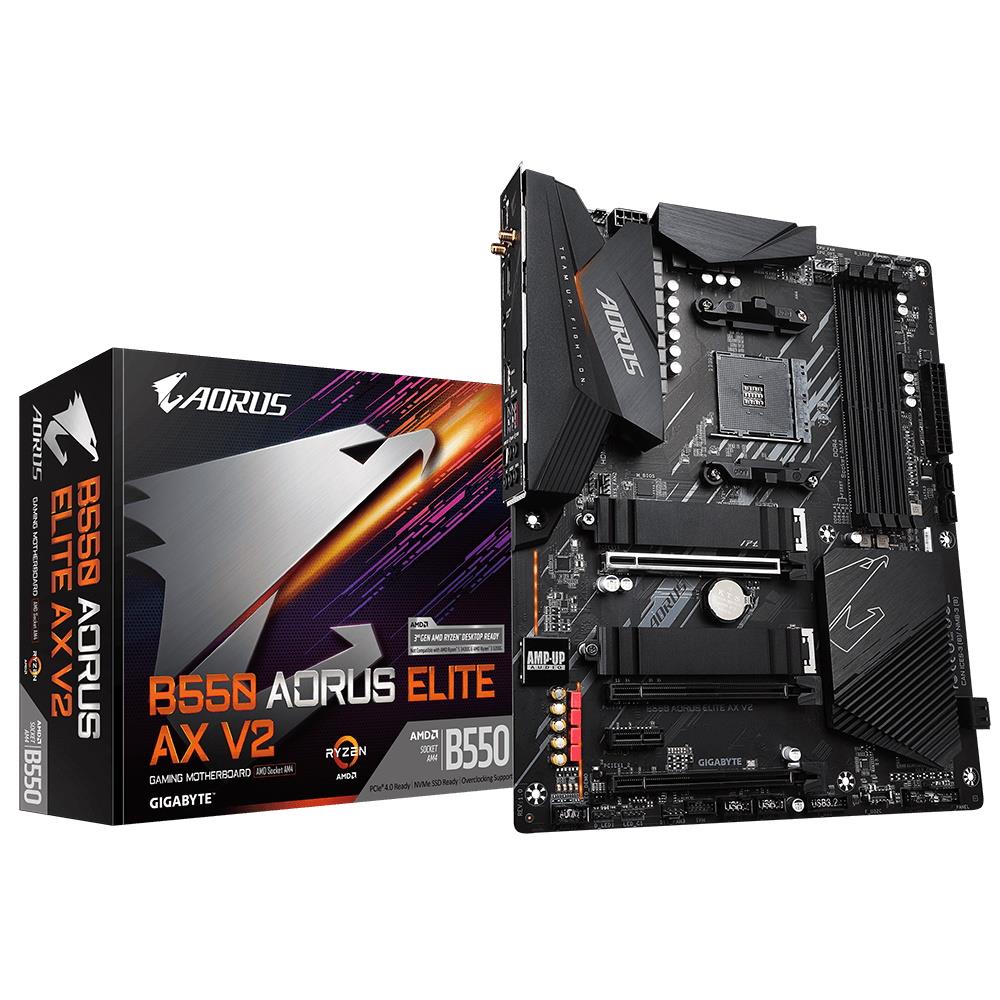

AORUS AM4 B550 AORUS ELITE AX V2
SKU: 119533

• Product Group:Motherboards
• Manufacturer:GIGABYTE
• SKU:119533
• Product Name:Aorus B550 AORUS ELITE AX V2 (Socket AM4/B550/DDR4/S-ATA 600/ATX/WiFi 6)
• Web Address:www.gigabyte.com
• Model Number:B550 AORUS ELITE AX V2
• EAN:4719331809904
• UPC:889523023969
• Package Type:Retail
• Warranty:3 Years
• BIOS:
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Chipset:AMD B550
• CPU Interface:Socket AM4
• CPU Support:https://www.gigabyte.com/Motherboard/B550-AORUS-ELITE-AX-V2-rev-10/support#support-cpu
• RAM Technology:DDR4 (Dual Channel)
• RAM Slots:4 x 288-pin
• RAM Speeds:Up to DDR4 4400 (O.C.)
• Max. Memory Support:128GB
• PCI Express 3.0 x16:3
• PCI Express 3.0 x1:1
• S-ATA 6Gb/s Port(s):4
• RAID:Raid 0/1/10
• M.2 Socket(s):2
• On-Board LAN:Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
• Wireless NIC:WiFi 6
• Wireless Technology:WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
• Bluetooth:v5.0
• On-Board Audio:
  • Realtek ALC1200 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
• On-Board Video:Processor with integrated graphics is required
• Back USB 3.0 Port(s):2
• Back USB 3.2 Port(s) Type-A Gen 1:3
• Back USB 3.2 Port(s) Type-A Gen 2:2
• Back HDMI Port(s):1
• Back DisplayPort(s):1
• Back LAN Port(s):1
• Back Audio Jack(s):5
• Back S/PDIF Output Port(s):1
• Back Other Port(s):2 x SMA antenna connectors (2T2R)
• Back Button(s):1 x Q-Flash Plus
• 24-pin ATX Power:1
• 8-pin ATX Power:1
• USB 2.0 Header(s):1
• USB 3.2 Header(s) Gen 1:1
• Front Panel Audio Connector:1
• TPM Header(s):1
• Internal Other Port(s):
  • 1 x CPU Cooler LED Strip/RGB LED Strip Header
  • 2 x Addressable LED Strip Headers
  • 2 x RGB LED Strip Headers
• Form Factor:Standard ATX
• Product Width:244mm
• Product Length:305mm
• Package Width:27cm
• Package Length:34cm
• Package Height:8cm
• Gross Weight:3.78Kg
• Special Features:
  • Supports AMD 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors.
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.
  • 12+2 Phases Digital Twin Power Design with 50A DrMOS.
  • Advanced Thermal Design with Enlarged Surface Heatsinks.
  • Ultra-Durable PCIe 4.0 x16 Slot.
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards.
  • Onboard Intel WiFi 6 802.11ax 2T2R and BT5 with AORUS Antenna.
  • AMP-UP Audio with ALC1200 and WIMA Capacitors.
  • Blazing Fast 2.5GbE LAN with Bandwidth Management.
  • Front USB 3.2 Gen1 Type-C and DisplayPort and HDMI for Multiple Display.
  • RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips.
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
  • Pre-installed IO Shield for Easy and Quick Installation.
• Package Contents:
  • B550 AORUS ELITE V2 motherboard
  • Support Disk
  • One G Connector
  • Manual
  • One antenna
  • Two SATA cables
• Keywords:
  • Motherboard
  • AM4
  • B550
  • DDR4
  • WiFi 6
  • Bluetooth
