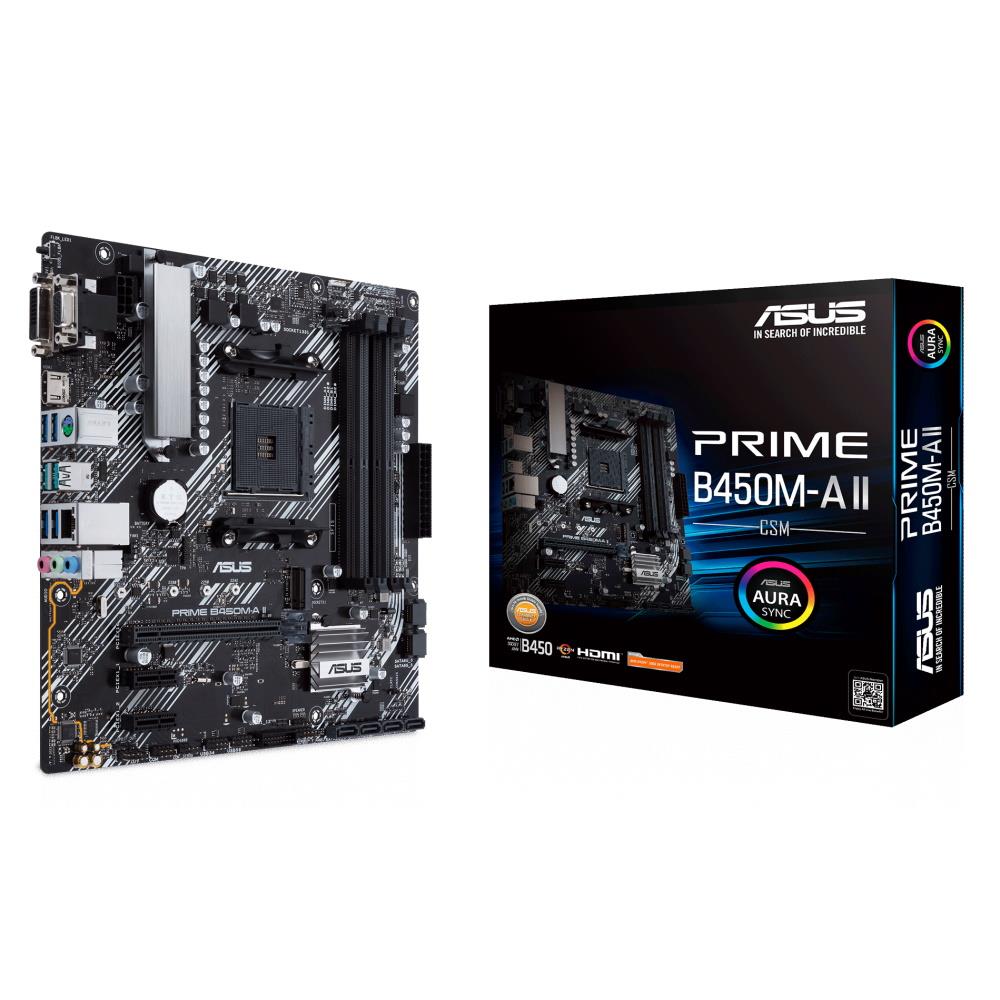

ASUS AM4 PRIME B450M-A II M-ATX
SKU: 119443

• Product Group:Motherboards
• Manufacturer:ASUS
• SKU:119443
• Product Name:ASUS PRIME B450M-A II (Socket AM4/B450/DDR4/S-ATA 600/Micro ATX)
• Web Address:www.asus.com
• Model Number:PRIME B450M-A II
• EAN:4718017924986
• UPC:192876924983
• Package Type:Retail
• Warranty:3 Years
• BIOS:
  • 256 Mb Flash ROM
  • UEFI AMI BIOS
• Chipset:AMD B450
• CPU Interface:Socket AM4
• CPU Support:https://www.asus.com/Motherboards/PRIME-B450M-A-II/HelpDesk_CPU/
• RAM Technology:DDR4 (Dual Channel)
• RAM Slots:4 x 288-pin
• RAM Speeds:Up to DDR4 4400 (O.C.)
• Max. Memory Support:128GB
• PCI Express 3.0 x16:1
• PCI Express 2.0 x1:2
• S-ATA 6Gb/s Port(s):6
• RAID:Raid 0/1/10
• M.2 Socket(s):1
• On-Board LAN:
  • Realtek RTL8111H
  • ASUS LANGuard
• On-Board Audio:Realtek 7.1-Channel High Definition Audio CODEC
• Back PS/2 Keyboard/Mouse Port:1
• Back USB 3.2 Port(s) Type-A Gen 1:4
• Back USB 3.2 Port(s) Type-A Gen 2:2
• Back VGA Port(s):1
• Back DVI-D Port(s):1
• Back HDMI Port(s):1
• Back LAN Port(s):1
• Back Audio Jack(s):3
• Back Button(s):1 x BIOS FlashBack
• 24-pin ATX Power:1
• 8-pin ATX Power:1
• USB 2.0 Header(s):2
• USB 3.2 Header(s) Gen 1:1
• COM Port Header(s):1
• TPM Header(s):1
• S/PDIF Out Header(s):1
• Form Factor:Micro ATX
• Product Width:244mm
• Product Length:244mm
• Package Width:27cm
• Package Length:27.5cm
• Package Height:5.5cm
• Gross Weight:2.16Kg
• Special Features:
  • Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+.
  • Ultrafast connectivity: M.2 support, 1 Gb Ethernet, and USB 3.2 Gen 2 Type-A.
  • 5X Protection III: Multiple hardware safeguards for all-around system protection.
  • Aura Sync RGB Lighting: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware.
• Package Contents:
  • Motherboard
  • Manual
  • IO Shield
  • 2 x SATA 6Gb/s cables
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
• Keywords:
  • Motherboard
  • AM4
  • B450
  • DDR4
  • HDMI
  • M-ATX
  • Micro ATX
