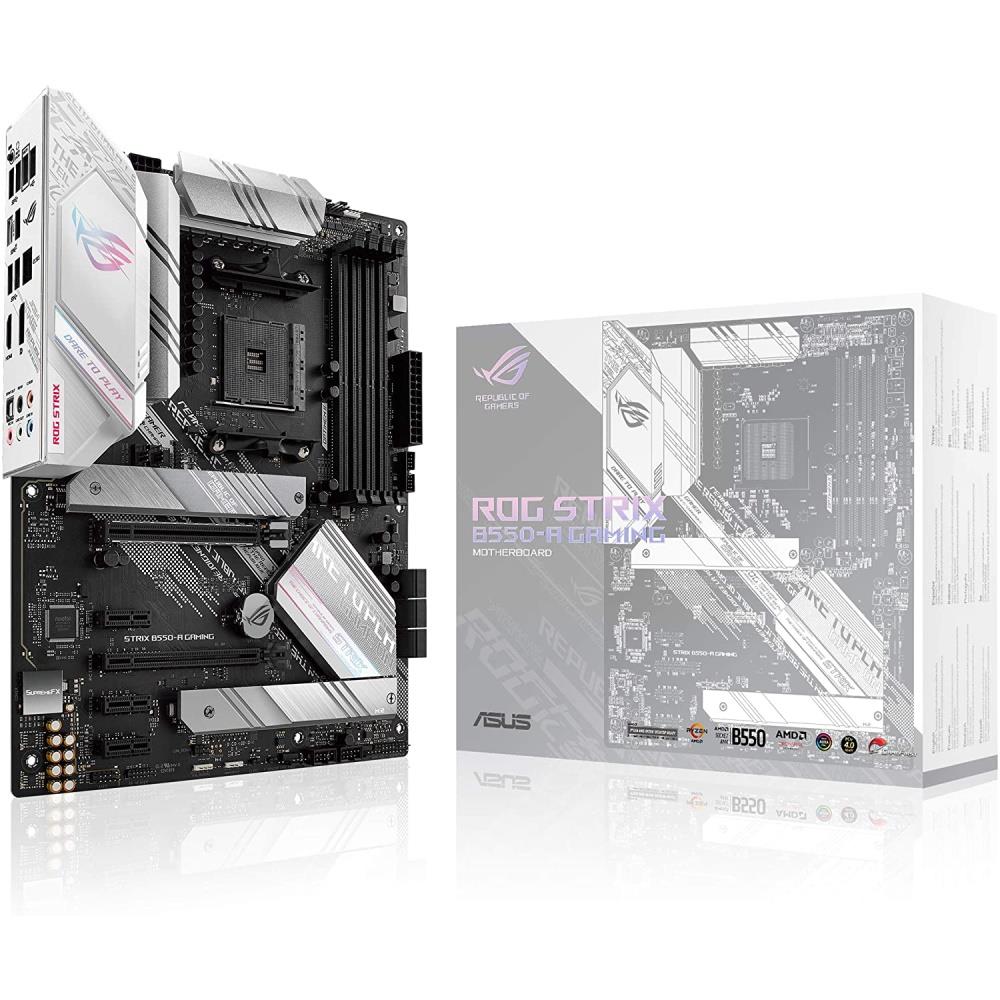

ASUS AM4 ROG STRIX B550-A GAMING



ASUS AM4 ROG STRIX B550-A GAMING
SKU: 119437

  • Product Group:Motherboards
  • Manufacturer:ASUS
  • SKU:119437
  • Product Name:ASUS ROG STRIX B550-A GAMING (Socket AM4/B550/DDR4/S-ATA 600/ATX)
  • Web Address:www.asus.com
  • Model Number:ROG STRIX B550-A GAMING
  • EAN:4718017826594
  • UPC:192876826591
  • Package Type:Retail
  • Warranty:3 Years
  • BIOS:256 Mb Flash ROM, UEFI AMI BIOS
  • Chipset:AMD B550
  • CPU Interface:Socket AM4
  • CPU Support:https://www.asus.com/uk/Motherboards/ROG-STRIX-B550-A-GAMING/HelpDesk_CPU/
  • RAM Technology:DDR4 (Dual Channel)
  • RAM Slots:4 x 288-pin
  • RAM Speeds:Up to DDR4 5100 (O.C.)
  • Max. Memory Support:128GB
  • PCI Express 3.0 x16:1
  • PCI Express 4.0 x16:1
  • PCI Express 3.0 x1:3
  • S-ATA 6Gb/s Port(s):6
  • RAID:Raid 0/1/10
  • M.2 Socket(s):2
  • On-Board LAN:
    • Intel I225-V 2.5Gb Ethernet
    • ASUS LANGuard
  • On-Board Audio:ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
  • Back USB 2.0 Port(s):2
  • Back USB 3.2 Port(s) Type-A Gen 1:4
  • Back USB 3.2 Port(s) Type-A Gen 2:1
  • Back USB 3.2 Port(s) Type-C Gen 2:1
  • Back HDMI Port(s):1
  • Back DisplayPort(s):1
  • Back LAN Port(s):1
  • Back Audio Jack(s):5
  • Back S/PDIF Output Port(s):1
  • Back Button(s):1 x BIOS FlashBack
  • 24-pin ATX Power:1
  • 8-pin ATX Power:1
  • 4-pin ATX Power:1
  • USB 2.0 Header(s):2
  • USB 3.2 Header(s) Gen 1:1
  • Thunderbolt Header(s):1
  • Front Panel Audio Connector:1
  • Internal Other Port(s):
    • 2 x Aura RGB Strip Headers
    • 1 x Addressable Gen 2 Header
    • 1 x Thermal Sensor Connector
  • Form Factor:Standard ATX
  • Product Width:244mm
  • Product Length:305mm
  • Package Width:27.5cm
  • Package Length:34cm
  • Package Height:7cm
  • Gross Weight:1.70Kg
  • Special Features:
    • AM4 socket: Ready for 3rd Gen AMD Ryzen processors.
    • Best gaming connectivity: PCIe 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C plus HDMI 2.1 and DisplayPort 1.2 output support.
    • Smooth networking: Intel 2.5Gb Ethernet with ASUS LANGuard.
    • Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors.
    • Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds.
    • DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack, Q-LEDs and SafeSlot.
    • Unmatched personalisation: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and addressable Gen 2 RGB header.
    • Industry-leading gaming audio: AI Noise-Cancelling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound and Sonic Studio III for immersive audio.
  • Package Contents:
    • Motherboard
    • Manual
    • 4 x SATA 6Gb/s cables
    • 1 x Supporting DVD
    • 1 x ROG Strix stickers
    • 1 x Cable ties pack
    • 1 x Extension cable for Addressable LED
    • 1 x ROG Thank you card
    • 1 x M.2 SSD screw package
    • 1 x M.2 Rubber Package
