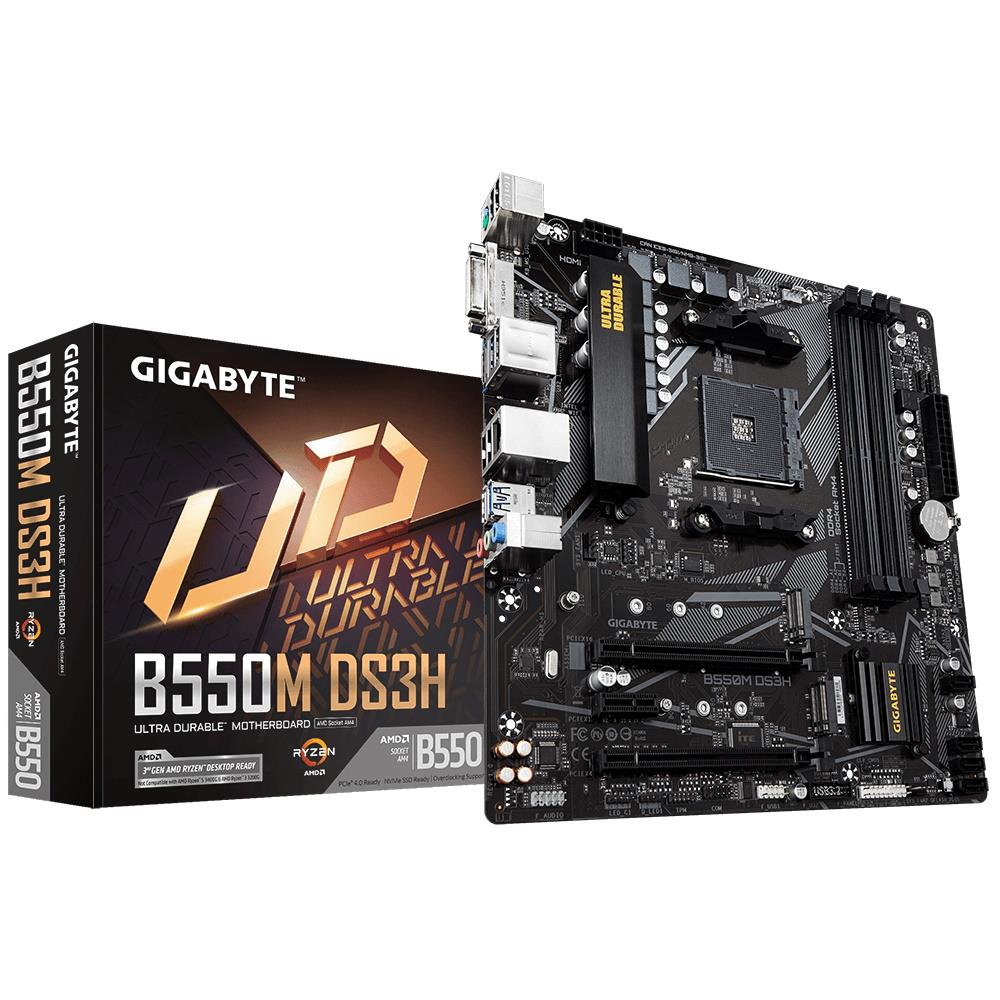

GIGABYTE AM4 B550M DS3H M-ATX
GIGABYTE AM4 B550M DS3H M-ATX
SKU: 119296
Product Group:
Motherboards
Manufacturer:
GIGABYTE
SKU:
119296
Product Name:
Gigabyte B550M DS3H (Socket AM4/B550/DDR4/S-ATA 600/Micro ATX)
Web Address:
www.gigabyte.com
Model Number:
B550M DS3H
EAN:
4719331809416
UPC:
889523022917
Package Type:
Retail
Warranty:
3 Years
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset:
AMD B550
CPU Interface:
Socket AM4
CPU Support:
https://www.gigabyte.com/uk/Motherboard/B550M-DS3H-rev-10/support#support-cpu
RAM Technology:
DDR4 (Dual Channel)
RAM Slots:
4 x 288-pin
RAM Speeds:
Up to DDR4 4733 (O.C.)
Max. Memory Support:
128GB
PCI Express 3.0 x16:
2
PCI Express 3.0 x1:
1
S-ATA 6Gb/s Port(s):
4
RAID:
Raid 0/1/10
M.2 Socket(s):
2
On-Board LAN:
Realtek GbE LAN chip (1000 Mbit/100 Mbit)
On-Board Audio:
Realtek ALC887 codec
On-Board Video:
AMD processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port:
1
Back USB 2.0 Port(s):
5
Back USB 3.2 Port(s) Type-A Gen 1:
4
Back DVI-D Port(s):
1
Back HDMI Port(s):
1
Back LAN Port(s):
1
Back Audio Jack(s):
3
24-pin ATX Power:
1
8-pin ATX Power:
1
USB 2.0 Header(s):
1
USB 3.2 Header(s) Gen 1:
1
COM Port Header(s):
1
Front Panel Audio Connector:
1
TPM Header(s):
1
Internal Other Port(s):
2 x Addressable LED Strip Headers
2 x RGB LED Strip Headers
1 x CPU cooler LED Strip/RGB LED Strip Header
Internal Button(s):
1 x Q-Flash Plus
Form Factor:
Micro ATX
Product Width:
244mm
Product Length:
244mm
Package Width:
26.5cm
Package Length:
27cm
Package Height:
5.5cm
Gross Weight:
2.02Kg
Special Features:
Supports 3rd Gen AMD Ryzen Processors.
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.
5+3 Phases Pure Digital VRM Solution with Low RDS (on) MOSFETs
Ultra-Durable PCIe 4.0 Ready x16 Slot.
Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors.
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality.
GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management.
Rear HDMI and DVI Support.
RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips.
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
Anti-Sulphur Resistors Design.
Package Contents:
B550M DS3H Motherboard
2 x SATA Cables
Support Disk
IO Shield
Manual
Keywords:
Motherboard
AM4
B550
DDR4
HDMI
PCIe
M-ATX
Micro ATX
