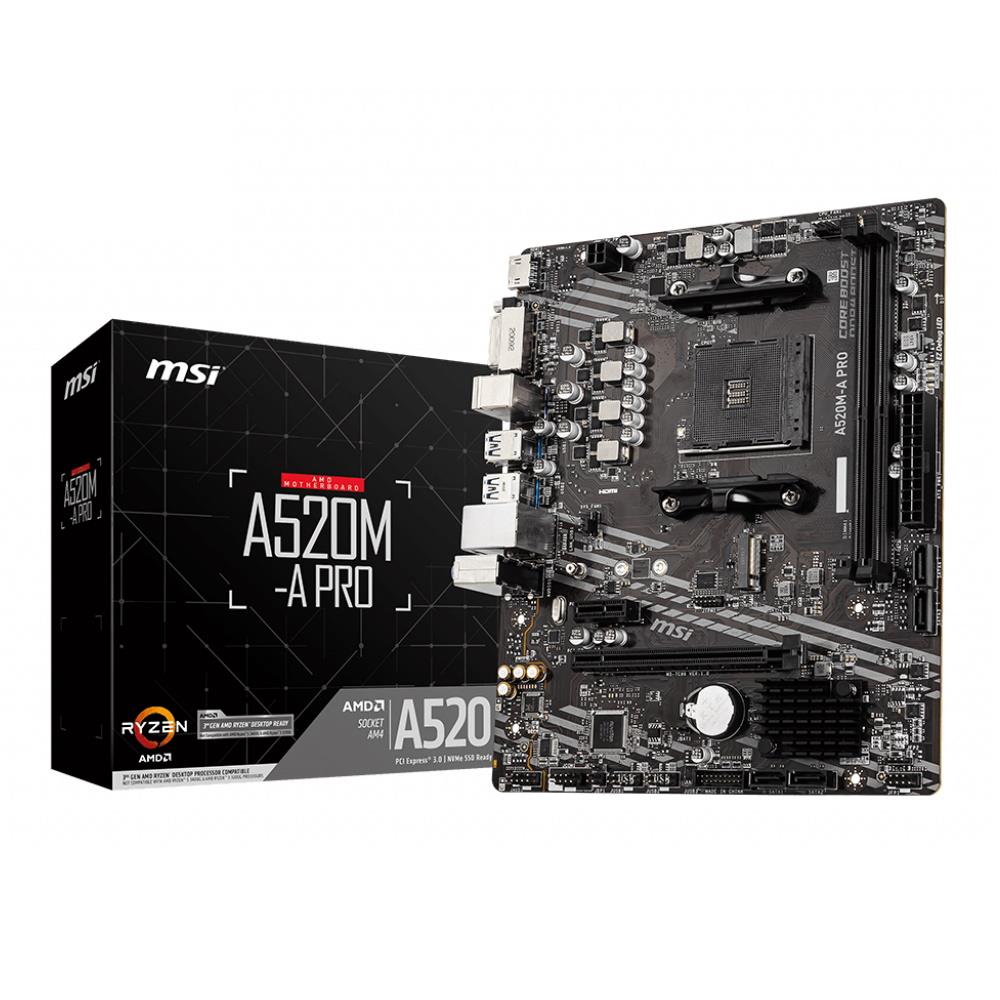

MSI AM4 A520M-A PRO M-ATX



MSI AM4 A520M-A PRO M-ATX
SKU: 119294

  • Product Group:Motherboards
  • Manufacturer:MSI
  • SKU:119294
  • Product Name:MSI A520M-A PRO (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)
  • Web Address:uk.msi.com
  • Model Number:A520M-A PRO
  • EAN:4719072749927
  • UPC:824142224007
  • Package Type:Retail
  • Warranty:3 Years
  • Chipset:AMD A520
  • CPU Interface:Socket AM4
  • CPU Support:https://www.msi.com/Motherboard/support/A520M-A-PRO#support-cpu
  • RAM Technology:DDR4 (Dual Channel)
  • RAM Slots:2 x 288-pin
  • RAM Speeds:Up to DDR4 4600+ (O.C.)
  • Max. Memory Support:64GB
  • PCI Express 3.0 x16:1
  • PCI Express 3.0 x1:1
  • S-ATA 6Gb/s Port(s):4
  • RAID:Raid 0/1/10
  • M.2 Socket(s):1
  • On-Board LAN:1 x Realtek RTL8111H Gigabit LAN controller
  • On-Board Audio:Realtek ALC892 Codec
  • On-Board Video:AMD processor with integrated graphics is required
  • Back PS/2 Keyboard/Mouse Port:1
  • Back USB 2.0 Port(s):2
  • Back USB 3.2 Port(s) Type-A Gen 1:4
  • Back DVI-D Port(s):1
  • Back HDMI Port(s):1
  • Back LAN Port(s):1
  • Back Audio Jack(s):3
  • 24-pin ATX Power:1
  • 8-pin ATX Power:1
  • USB 2.0 Header(s):2
  • USB 3.2 Header(s) Gen 1:1
  • Front Panel Audio Connector:1
  • TPM Header(s):1
  • Form Factor:Micro ATX
  • Product Width:200mm
  • Product Length:236mm
  • Package Width:26cm
  • Package Length:27cm
  • Package Height:5.5cm
  • Gross Weight:1.66Kg
  • Special Features:
    • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe
    • based SSDs.
    • Core Boost: With premium layout and digital power design to support more
    • cores and provide better performance.
    • DDR4 Boost: Advanced technology to deliver pure data signals for the
    • best performance and stability.
    • 2oz Thickened Copper PCB: An enhanced PCB design improves heat
    • dissipation and performance reliability.
    • Audio Boost: Reward your ears with studio grade sound quality.
    • Dragon Centre: A brand new software which integrates all MSI exclusive tools
    • with user friendly user interface
  • Package Contents:
    • Motherboard
    • MSI Case Bage
    • Quick Installation
    • 2 x SATA Cables
    • IO Shield
    • Support Disk
  • Keywords:
    • Motherboard
    • AM3
    • A520
    • DDR4
    • PCIe
    • HDMI
    • M-ATX
    • Micro ATX
