Home > Online Shop > Motherboards > ASUS AM4 PRIME A520M-K M-ATX

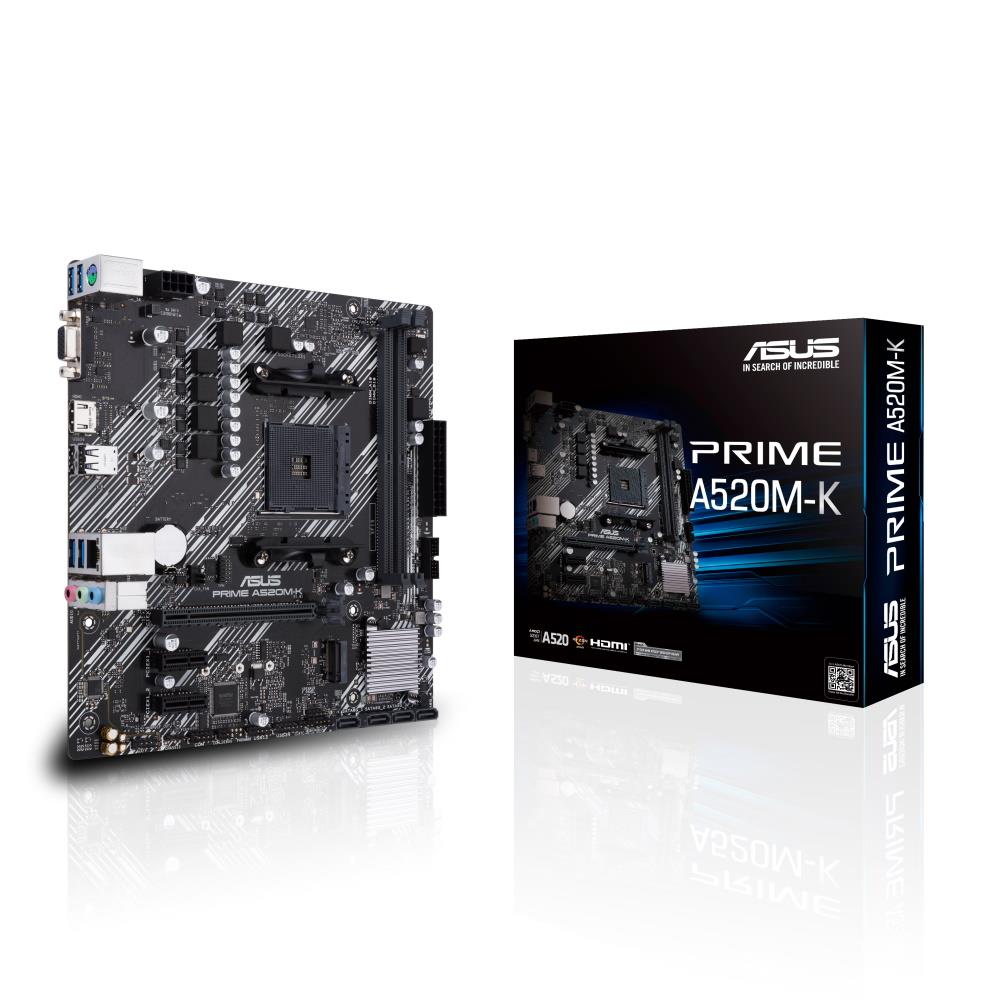

ASUS AM4 PRIME A520M-K M-ATX



ASUS AM4 PRIME A520M-K M-ATX
SKU: 119291

  • Product Group:Motherboards
  • Manufacturer:ASUS
  • SKU:119291
  • Product Name:ASUS PRIME A520M-K (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)
  • Web Address:www.asus.com
  • Model Number:PRIME A520M-K
  • EAN:4718017826921
  • UPC:192876826928
  • Package Type:Retail
  • Warranty:3 Years
  • BIOS:256 Mb Flash ROM, UEFI AMI BIOS
  • Chipset:AMD A520
  • RAM Technology:DDR4 (Dual Channel)
  • RAM Slots:2 x 288-pin
  • RAM Speeds:Up to DDR4 4600 (O.C.)
  • Max. Memory Support:64GB
  • PCI Express 3.0 x16:1
  • PCI Express 3.0 x1:2
  • S-ATA 6Gb/s Port(s):4
  • RAID:Raid 0/1/5/10
  • M.2 Socket(s):1
  • On-Board LAN:1 x Realtek RTL8111H 1Gb Ethernet
  • On-Board Audio:Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
  • On-Board Video:AMD processor with integrated graphics is required
  • Back PS/2 Keyboard/Mouse Port:1
  • Back USB 2.0 Port(s):2
  • Back USB 3.2 Port(s) Type-A Gen 1:4
  • Back VGA Port(s):1
  • Back HDMI Port(s):1
  • Back LAN Port(s):1
  • Back Audio Jack(s):3
  • 24-pin ATX Power:1
  • 8-pin ATX Power:1
  • USB 2.0 Header(s):2
  • USB 3.2 Header(s) Gen 1:1
  • COM Port Header(s):1
  • Front Panel Audio Connector:1
  • TPM Header(s):1
  • S/PDIF Out Header(s):1
  • Form Factor:Micro ATX
  • Product Width:221mm
  • Product Length:226mm
  • Package Width:26cm
  • Package Length:27cm
  • Package Height:5cm
  • Gross Weight:0.89Kg
  • Special Features:
    • ASUS DIGI+ VRM
    • ASUS LANGuard
    • ASUS Overvoltage Protection
    • ASUS SafeSlot Core
    • ASUS Stainless-Steel Back I/O
  • Package Contents:
    • Motherboard
    • 2 x SATA 6Gb/s Cables
    • IO Shield
    • 1 x M.2 SSD Screw Package
    • Support Disk
    • Manual
  • Keywords:
    • Motherboard
    • AM4
    • A520
    • DDR4
    • PCIe
    • USB 3.2
    • M-ATX
    • Micro ATX
