Home > Online Shop > Motherboards > MSI AM4 B550M PRO-VDH WIFI M-ATX

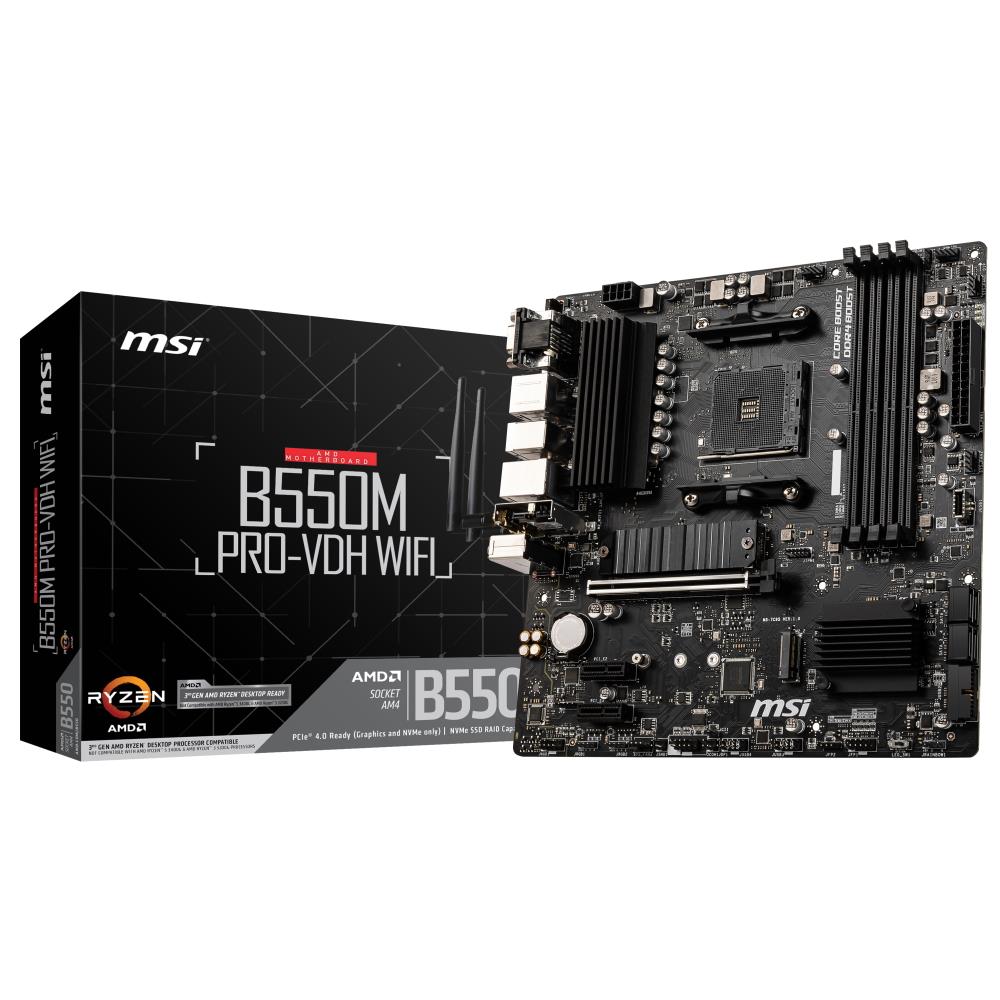

MSI AM4 B550M PRO-VDH WIFI M-ATX



MSI AM4 B550M PRO-VDH WIFI M-ATX
SKU: 119048

  • Product Group:Motherboards
  • Manufacturer:MSI
  • SKU:119048
  • Product Name:MSI B550M PRO-VDH WIFI (Socket AM4/B550/DDR4/S-ATA 600/Micro ATX)
  • Web Address:uk.msi.com
  • Model Number:B550M PRO-VDH WIFI
  • EAN:4719072733698
  • UPC:824142219393
  • Package Type:Retail
  • Warranty:3 Years
  • Chipset:AMD B550
  • CPU Interface:Socket AM4
  • RAM Technology:DDR4 (Dual Channel)
  • RAM Slots:4 x 288-pin
  • RAM Speeds:Up to DDR4 4400+
  • PCI Express 4.0 x16:1
  • PCI Express 3.0 x1:2
  • S-ATA 6Gb/s Port(s):4
  • M.2 Socket(s):2
  • On-Board LAN:Realtrk RTL8111HN Gigabit LAN
  • Wireless NIC:Wi-Fi 5
  • Bluetooth:v4.2
  • On-Board Audio:8-Channel (7.1) HD Audio with Audio Boost
  • On-Board Video:AMD processor with integrated graphics is required
  • Back PS/2 Keyboard/Mouse Port:1
  • Back USB 2.0 Port(s):2
  • Back USB 3.2 Port(s) Type-A Gen 1:4
  • Back VGA Port(s):1
  • Back HDMI Port(s):1
  • Back DisplayPort(s):1
  • Back LAN Port(s):1
  • Back Audio Jack(s):3
  • Back Other Port(s):Wi-Fi/Bluetooth
  • Back Button(s):Flash BIOS
  • Form Factor:Micro ATX
  • Package Width:27cm
  • Package Length:28cm
  • Package Height:6.5cm
  • Gross Weight:1.12Kg
  • Special Features:
    • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
    • DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
    • Lighting Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
    • M.2 Shield FROZR: Strengthened build-in M.3 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
    • PCI-E Steel Armor: Protecting VGA cards against bending and EMI
    • Mystic Light Extension: Control additional RGB or Rainbow strip added to your system with Dragoon Centre.
  • Package Contents:Motherboard
  • Keywords:
    • Motherboard
    • AM4
    • B550
    • DisplayPort
    • HDMI
    • Wi-Fi
    • Bluetooth
