Product Name:

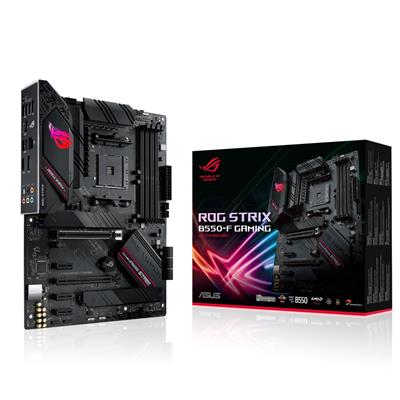

ASUS ROG STRIX B550-F GAMING (Socket AM4/B550/DDR4/S-ATA 600/ATX)

Web Address:

www.asus.com

Model Number:

ROG STRIX B550-F GAMING

EAN:

4718017749688

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 256 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

AMD B550

CPU Interface:

Socket AM4

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 4400 (O.C)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

2

PCI Express 3.0 x1:

3

S-ATA 6Gb/s Port(s):

6

RAID:

Raid 0/1/10

M.2 Socket(s):

2

On-Board LAN:

Intel I225-V 2.5Gb Ethernet

On-Board Audio:

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-C Gen 1:

4

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Other Port(s):

ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

Back Button(s):

1 x BIOS FlashBack

24-pin ATX Power:

1

8-pin ATX Power:

1

4-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

Thunderbolt Header(s):

1

Internal Other Port(s):

• 2 x Aura RGB Strip Headers
• 1 x Addressable Gen 2 Headers
• 1 x Thermal sensor Connector

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.5cm

Package Length:

34cm

Package Height:

7cm

Gross Weight:

1.68Kg

Special Features:

• Aura Sync
• ASUS Q-Design
• ASUS Thermal Solution
• ASUS EZ DIY

Package Contents:

• Motherboard
• Manual
• 4 x SATA 6Gb/s cables
• 1 x Supporting Disk
• 1 x ROG Strix Stickers
• 1 x Cable Ties Pack
• 1 x Extension Cable for Addressable LED
• 1 x ROG Thank You Card
• 1 x M.2 SSD Screw Package
• 1 x M.2 Rubber Package
