Product Name:

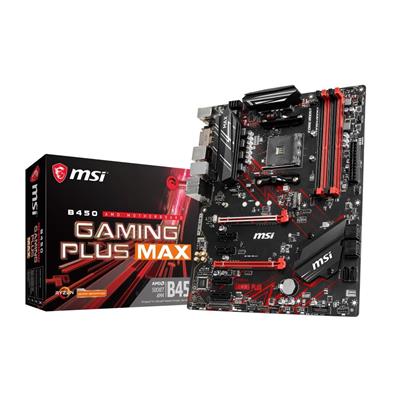

MSI B450 GAMING PLUS MAX (Socket AM4/B450/DDR4/S-ATA 600/ATX)

Web Address:

uk.msi.com

Model Number:

C-B450 GAMING PLUS MAX

EAN:

4719072658557

UPC:

824142189696

Package Type:

Retail

Warranty:

1 Year

Chipset:

AMD B450

CPU Interface:

Socket AM4

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

• DDR4 1866
• DDR4 2133
• DDR4 2400
• DDR4 2667
• DDR4 2800 (O.C.)
• DDR4 2933 (O.C.)
• DDR4 3000 (O.C.)
• DDR4 3066 (O.C.)
• DDR4 3200 (O.C.)
• DDR4 3466 (O.C.)
• DDR4 4000 (O.C.)
• DDR4 4133 (O.C.)

Max. Memory Support:

64GB

PCI Express 2.0 x16:

1

PCI Express 3.0 x16:

1

PCI Express 2.0 x1:

4

S-ATA 6Gb/s Port(s):

6

M.2 Socket(s):

1

LAN Speed:

10/100/1000

On-Board LAN:

Realtek 8111H

On-Board Audio:

7.1

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.1 Port(s) Type-A Gen 1:

2

Back USB 3.1 Port(s) Type-A Gen 2:

2

Back DVI-D Port(s):

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

6

Back Button(s):

Flash BIOS

Form Factor:

Standard ATX

Package Width:

27cm

Package Length:

34.5cm

Package Height:

6.5cm

Gross Weight:

1.44Kg

Special Features:

• AMD Turbo USB 3.2 Gen2
• Turbo M.2
• Flash BIOS Button
• Audio Boost
• Core Boost
• DDR4 Boost
• Multi-GPU
• EZ Debug LED

Package Contents:

Motherboard

Keywords:

• Motherboard
• AM4
• B450
• PCIe
• HDMI
• DDR4
• USB 3.2
• M.2
