Product Name:

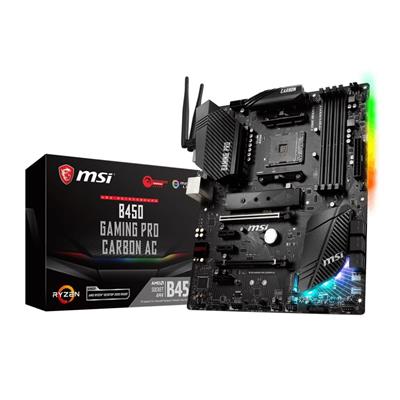

MSI B450 GAMING PRO CARBON AC (Socket AM4/B450/DDR4/S-ATA 600/ATX)

Web Address:

uk.msi.com

Model Number:

B-B450 GAMING PRO CARBON AC

EAN:

4719072587031

UPC:

824142168073

Package Type:

Retail

Warranty:

1 Year

CPU Interface:

Socket AM4

CPU Support:

https://www.msi.com/Motherboard/support/B450-GAMING-PRO-CARBON-AC

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

• DDR4 1866
• DDR4 2133
• DDR4 2400
• DDR4 2667 (O.C.)
• DDR4 2933 (O.C.)
• DDR4 3000 (O.C.)
• DDR4 3066 (O.C.)
• DDR4 3200 (O.C.)
• DDR4 3466 (O.C.)

Max. Memory Support:

64GB

PCI Express 2.0 x16:

1

PCI Express 3.0 x16:

1

PCI Express 2.0 x1:

3

S-ATA 6Gb/s Port(s):

6

M.2 Socket(s):

2

LAN Speed:

10/100/1000

On-Board LAN:

Intel I211AT

Wireless NIC:

802.11 ac

Wireless Technology:

Dual band (2.4GHz, 5GHz) up to 1.73 Gbps speed

Bluetooth:

v4.2

On-Board Audio:

Realtek ALC1220 Codec

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.1 Port(s) Type-A Gen 1:

2

Back USB 3.1 Port(s) Type-A Gen 2:

1

Back USB 3.1 Port(s) Type-C Gen 2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Button(s):

BIOS Flashback

24-pin ATX Power:

1

8-pin ATX Power:

1

4-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.1 Header(s) Gen 1:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 2 x 5050 RGB LED strip 12V connectors
• 1 x WS2812B Individually Addressable RGB LED strip 5V connector
• 1 x CORSAIR connector

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

35.5cm

Package Height:

8cm

Gross Weight:

1.74Kg

Special Features:

• Supports AMD RYZEN 1st and 2nd Generation/Ryzen with Radeon Vega Graphics Processors for Socket AM4.
• Supports DDR4-3466+(OC) Memory.
• Mystic Light and Mystic Light Sync: 16.8 million colours/17 effects in one click. Synchronize RGB/RAINBOW strips and other RGB solutions for customization.
• Lightning Fast Game experience: TURBO M.2 with M.2 Shield, StoreMI, AMD Turbo USB 3.1 GEN2.
• Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality for the most immersive gaming experience.
• Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Extended Heatsink Design.
• Core Boost: With premium layout and digital power design to support more cores and provide better performance.
• DDR4 Boost: Give your DDR4 memory a performance boost with A-XMP.
• GAMING LAN and Wireless support, powered by Intel®: The best online gaming experience with lowest latency and bandwidth management.
• MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire.
• BIOS FLASHBACK+: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
• In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost.
• GAMING CERTIFIED: 24-hour on and offline game and motherboard testing by eSports players.

Package Contents:

• Motherboard
• Driver Disk
• Manual
• Quick Installation Guide
• Case Stand-off Notification
• IO Shield
• SATA Cable Labels
• Case Badge
• VIP card
• 2 x Antenna
• 2 x SATA Data cables
• 1 x RGB LED Extension cable 80cm
• 1 x M.2 Screw
