Product Name:

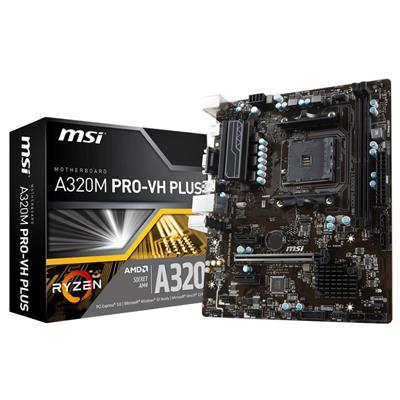

MSI A320M PRO-VH PLUS (Socket AM4/A320/DDR4/S-ATA 600/Micro ATX)

Web Address:

uk.msi.com

Model Number:

C-A320M PRO-VH PLUS

EAN:

4719072527433

UPC:

824142149072

Package Type:

Retail

Warranty:

1 Year

Chipset:

AMD A320

CPU Interface:

Socket AM4

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

• DDR4 1866
• DDR4 2133
• DDR4 2400
• DDR4 2667
• DDR4 2933 (O.C.)
• DDR4 3200 (O.C.)

Max. Memory Support:

32GB

PCI Express 3.0 x16:

1

PCI Express 3.0 x1:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

LAN Speed:

10/100/1000

On-Board LAN:

Realtek

On-Board Audio:

Realtek ALC887 Codec

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.1 Port(s) Type-A Gen 1:

4

Back VGA Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.1 Header(s) Gen 1:

1

COM Port Header(s):

2

Front Panel Audio Connector:

1

TPM Header(s):

1

Form Factor:

Micro ATX

Product Width:

187mm

Product Length:

236mm

Package Width:

26cm

Package Length:

26cm

Package Height:

5.5cm

Gross Weight:

0.79Kg

Special Features:

• Supports AMD RYZEN series processors and 7th Gen A-series / Athlon Processors for socket AM4
• Support DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) Mhz
• DDR4 Boost: Give your DDR4 memory a performance boost
• VR Ready: Best virtual reality game experience without latency
• Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience
• EZ Debug LED: Easiest way to troubleshoot
• X-Boost: Great tool to boost your USB and Storage performance
• Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
• Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
• WHQL certified for Windows 10

Package Contents:

• Motherboard
• Quick Installation Guide
• Backplate
• Support Disk
• 2 x SATA Data cables
