Product Name:

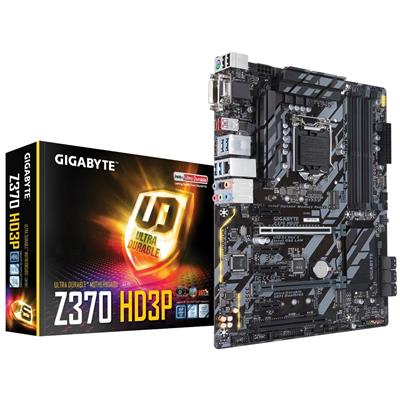

Gigabyte Z370 HD3P (Socket 1151/Z370 Express/DDR4/S-ATA 600/ATX)

Web Address:

www.gigabyte.com

Model Number:

C-Z370 HD3P

EAN:

4719331802318

UPC:

889523011348

Package Type:

Retail

Warranty:

1 Year

BIOS:

• 2 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel Z370 Express

CPU Interface:

Socket 1151

CPU Support:

https://www.gigabyte.com/Motherboard/Z370-HD3P-rev-10#support-cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

• DDR4 2133
• DDR4 2400
• DDR4 2666
• DDR4 2800 (O.C.)
• DDR4 3000 (O.C.)
• DDR4 3200 (O.C.)
• DDR4 3300 (O.C.)
• DDR4 3333 (O.C.)
• DDR4 3400 (O.C.)
• DDR4 3466 (O.C.)
• DDR4 3600 (O.C.)
• DDR4 3666 (O.C.)
• DDR4 3733 (O.C.)
• DDR4 3800 (O.C.)
• DDR4 3866 (O.C.)
• DDR4 4000 (O.C.)

Max. Memory Support:

64GB

PCI Express 3.0 x16:

2

PCI Express 3.0 x1:

4

PCI:

1

S-ATA 6Gb/s Port(s):

6

RAID:

Raid 0/1/5/10

M.2 Socket(s):

2

LAN Speed:

10/100/1000

On-Board LAN:

Intel

On-Board Audio:

Realtek ALC1220 codec

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.1 Port(s) Type-A Gen 1:

4

Back USB 3.1 Port(s) Type-C Gen 1:

1

Back USB 3.1 Port(s) Type-A Gen 2:

1

Back VGA Port(s):

1

Back DVI-D Port(s):

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

6

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.1 Header(s) Gen 1:

1

USB 3.1 Header(s) Gen 2:

1

Parallel Port Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

1 x RGB LED strip header

Form Factor:

Standard ATX

Product Width:

225mm

Product Length:

305mm

Package Width:

26cm

Package Length:

33cm

Package Height:

5.5cm

Gross Weight:

1.11Kg

Special Features:

• Supports 8th Gen Intel Core Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel Optane Memory Ready
• ASMedia 3142 USB 3.1 Gen2 with USB Type-C and Type-A
• Front USB 3.1 Gen1 Type-C Header
• 2-Way CrossFire Multi-Graphics with PCIe Armor and Ultra Durable Design
• ALC1220 120dB SNR HD Audio with Smart Headphone Amp
• Intel Gigabit LAN with cFosSpeed Internet Accelerator Software
• Ultra Durable 25KV ESD and 15KV Surge LAN Protection
• Dual Ultra-Fast M.2 with PCIe Gen3 x4 and SATA interface
• RGB FUSION supports RGB LED strips in 7 colours
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Anti-Sulfur Resistors Design
• APP Centre Including EasyTune and Cloud Station Utilities

Package Contents:

• Motherboard
• Manual
• Support Disk
• IO Shield
• 2 x SATA Data cables
